Upright Post · TSAF-BARR-UP1050
TSAF-BARR-UP1050

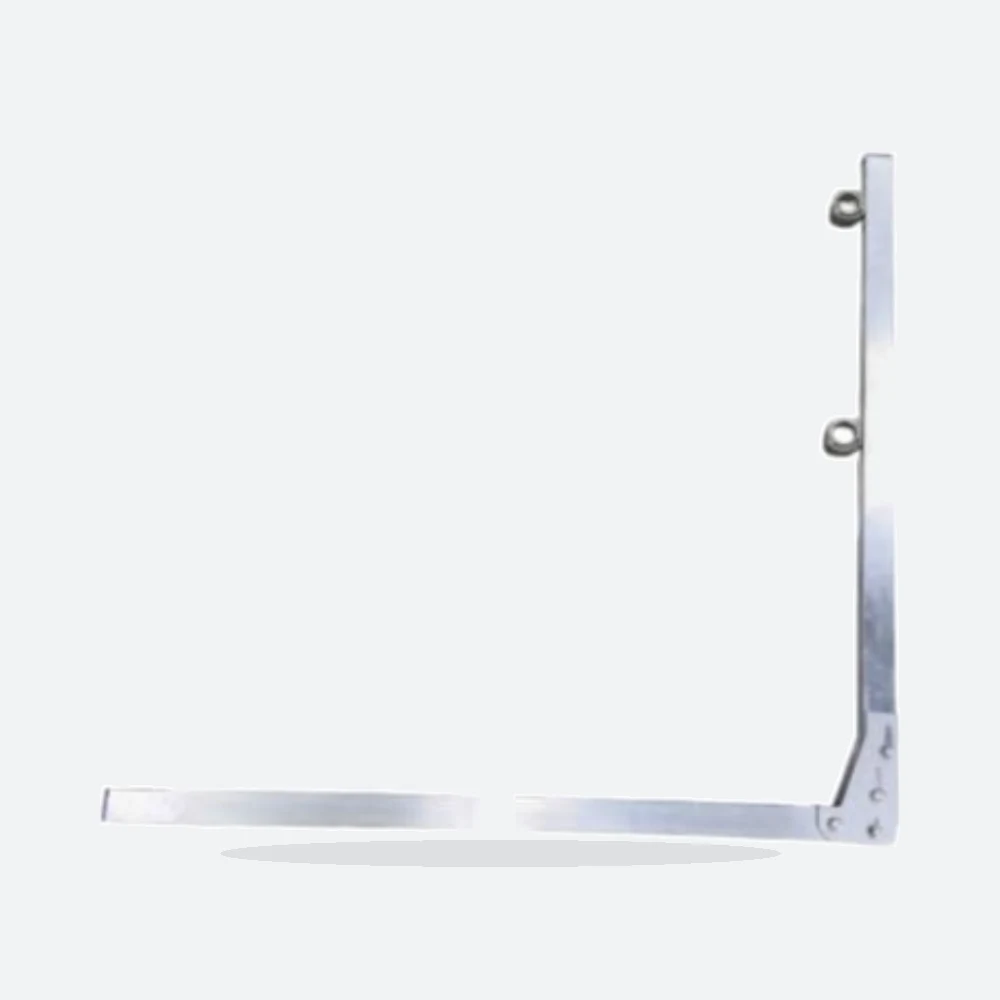

Upright Post – TSAF-BARR-UP1050
1050 mm aluminium alloy 6063-T6 upright post for the Aluminium Barricade System, spaced at up to 2050 mm.
Used in
Specifications
| SKU | TSAF-BARR-UP1050 |
|---|---|
| Material | Aluminium Alloy 6063-T6 |
| Height | 1050 mm |
| Max. Spacing b/w Upright Posts | 2050 mm |
| Available configurations include | 2,3,4 horizontal tubes |
The TSAF-BARR-UP1050 Upright Post is the main vertical member of the Rooftop Barricade System, catalogued as the Aluminium Barricade System. It is made from aluminium alloy 6063-T6 and is 1050 mm high.
The catalogue gives a maximum spacing of 2050 mm between upright posts and lists available configurations with 2, 3 or 4 horizontal tubes. Barricade tubes are attached to the posts with TSAF-BARR-TC tube clamps. The guardrail is used along roof edges and parapets, around rooftop equipment, at open sides and platforms, and around roof hatches, ladder exits and skylights.
Downloads
- Datasheet available on request — add this product to your enquiry.
Specifications are indicative. Refer to the product datasheet or ask our engineers for project-specific values.
Works with
Compatible components
TSAF-BARR-BT36
Barricade Tube
Aluminium alloy 6063-T6 barricade tube, 36 mm outside diameter with a 2.0 mm wall, forming the…
TSAF-BARR-LC120
Linear Connector
Aluminium alloy 6063-T6 connector that joins Ø36 mm barricade tubes in a straight line for a…

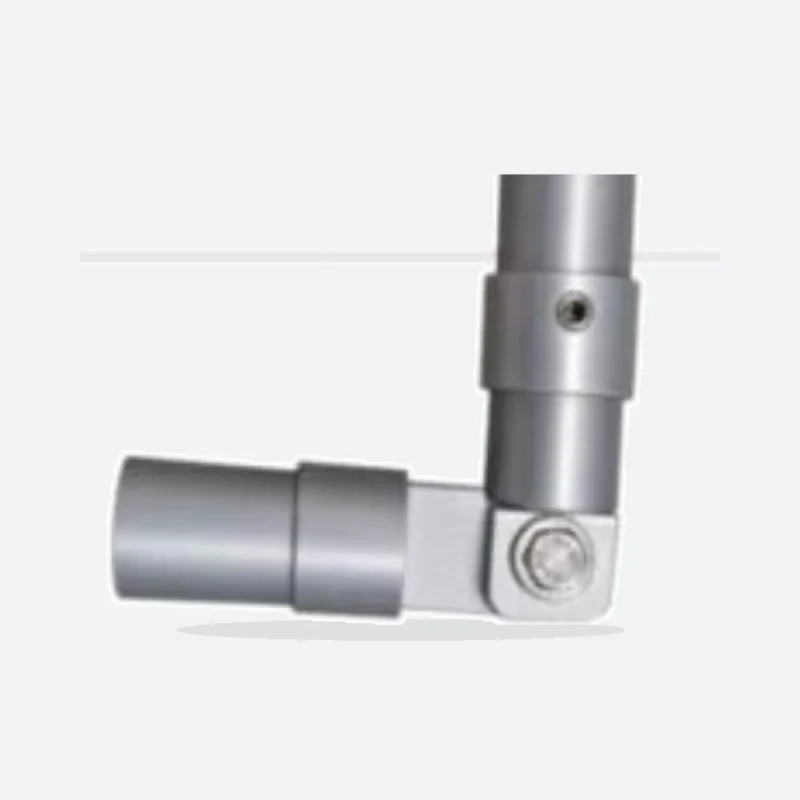

TSAF-BARR-CC315
