Corner Connector · TSAF-BARR-CC315
TSAF-BARR-CC315

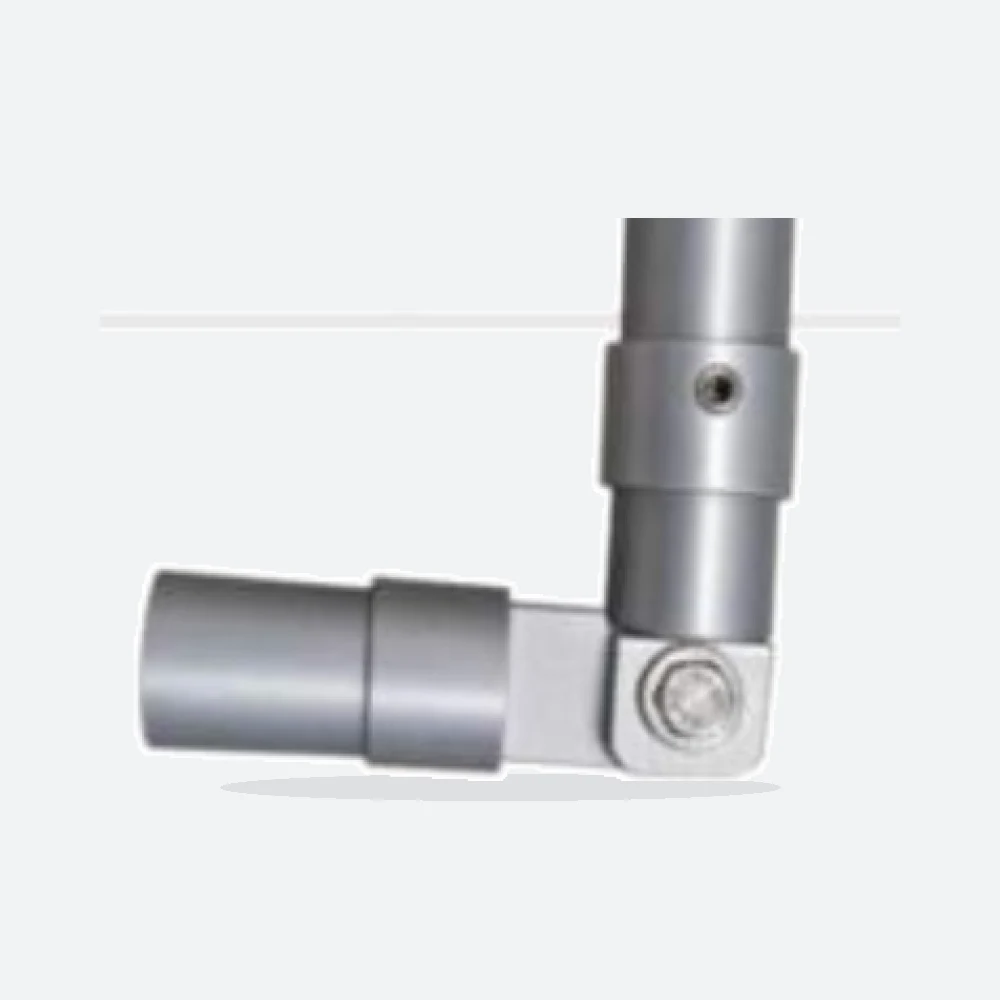

Corner Connector – TSAF-BARR-CC315
Adjustable aluminium alloy 6063-T6 connector that changes the barricade direction through 0°-315°.
Used in
Specifications
| SKU | TSAF-BARR-CC315 |
|---|---|
| Material | Aluminium Alloy 6063-T6 |
| Application | Barricade Direction Change |
| Angular Adjustment Range | 0°-315° |
| Compatible Tube Diameter | Ø36 mm |
| Layout Compatibility | Variable Rooftop Geometries |
The TSAF-BARR-CC315 Corner Connector changes the direction of the guardrail in the Rooftop Barricade System. It is made from aluminium alloy 6063-T6 and suits tubes of Ø36 mm.
The catalogue gives an angular adjustment range of 0°-315°, which allows the barricade to follow corners and variable rooftop geometries rather than only right angles. This supports the system's modular design, which adapts to corners, slopes and changes in roof layout. Corner positions and angles are taken from the roof survey and set out during installation.
Downloads
- Datasheet available on request — add this product to your enquiry.
Specifications are indicative. Refer to the product datasheet or ask our engineers for project-specific values.
Works with
Compatible components
TSAF-BARR-TC
Tube Clamp
ADC12 aluminium alloy tube clamp that connects Ø36 mm barricade tubes to the upright posts at…

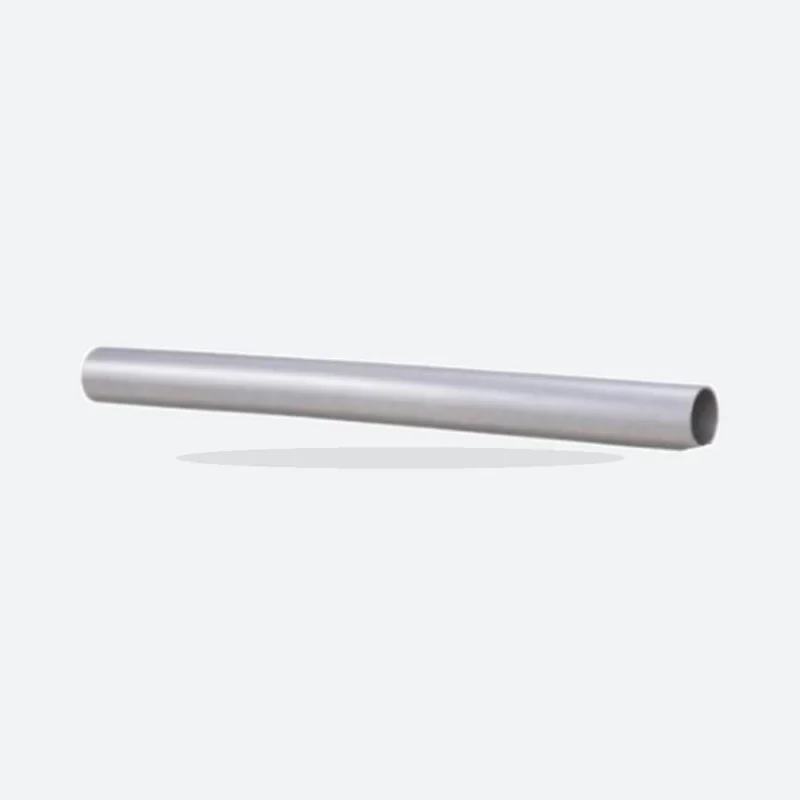

TSAF-BARR-BT36
Barricade Tube
Aluminium alloy 6063-T6 barricade tube, 36 mm outside diameter with a 2.0 mm wall, forming the…

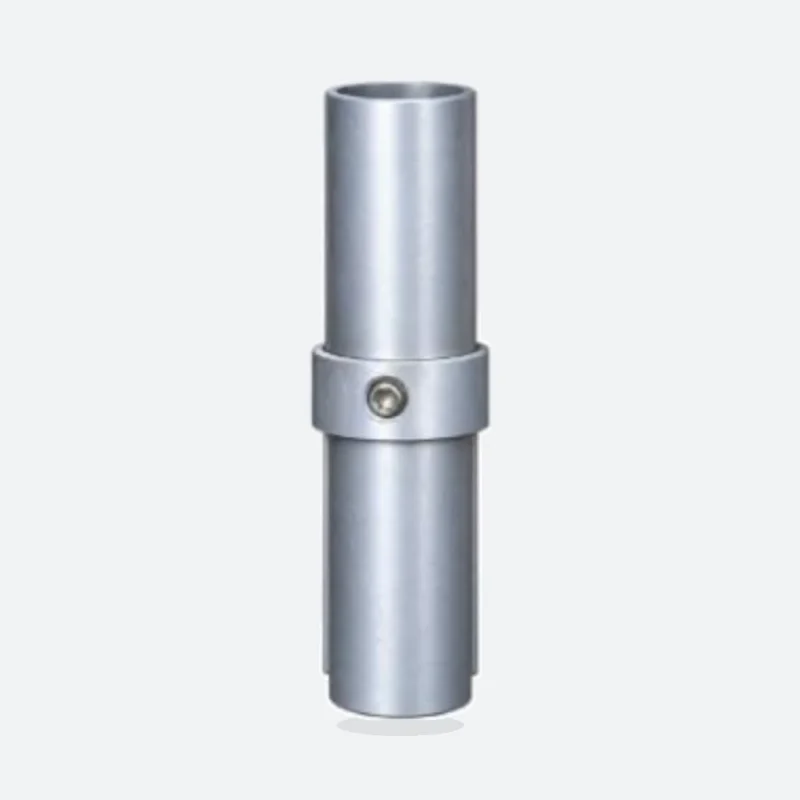

TSAF-BARR-LC120
