Tube Clamp · TSAF-BARR-TC
TSAF-BARR-TC

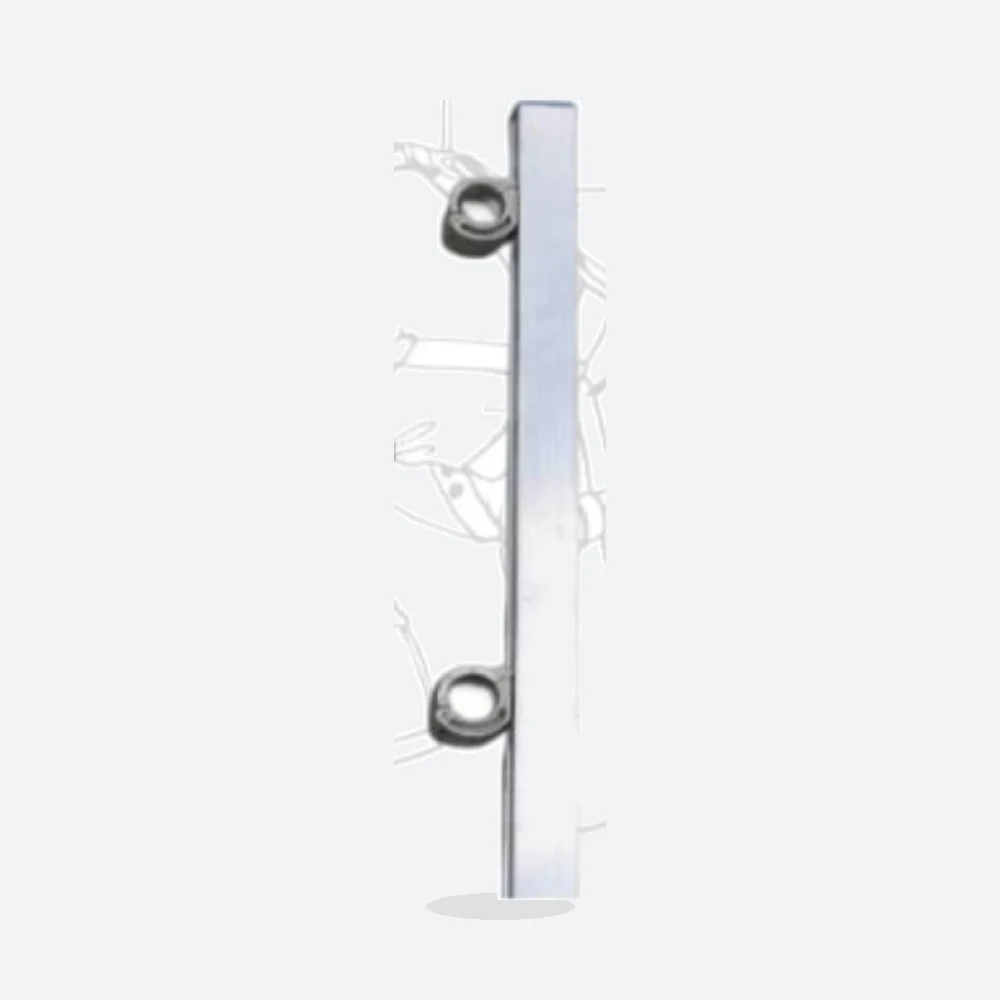

Tube Clamp – TSAF-BARR-TC
ADC12 aluminium alloy tube clamp that connects Ø36 mm barricade tubes to the upright posts at an adjustable position.
Used in
Specifications
| SKU | TSAF-BARR-TC |
|---|---|
| Material | ADC12 Aluminium Alloy |
| Component | Tube Clamp |
| Compatible Tube Diameter | Ø36 mm |
| Connection Type | Tube-to-Upright Connection |
| Tube Position | Adjustable |
The TSAF-BARR-TC Tube Clamp connects the horizontal barricade tubes to the upright posts of the Rooftop Barricade System. It is made from ADC12 aluminium alloy and suits tubes of Ø36 mm.
The connection type is tube-to-upright, and the tube position on the post is adjustable. This allows the guardrail to be set out with 2, 3 or 4 horizontal tubes as specified for the site. The modular clamp connection is part of what lets the system adapt to corners, slopes and changes in roof layout.
Downloads
- Datasheet available on request — add this product to your enquiry.
Specifications are indicative. Refer to the product datasheet or ask our engineers for project-specific values.
