TSAF-BARR-LC120

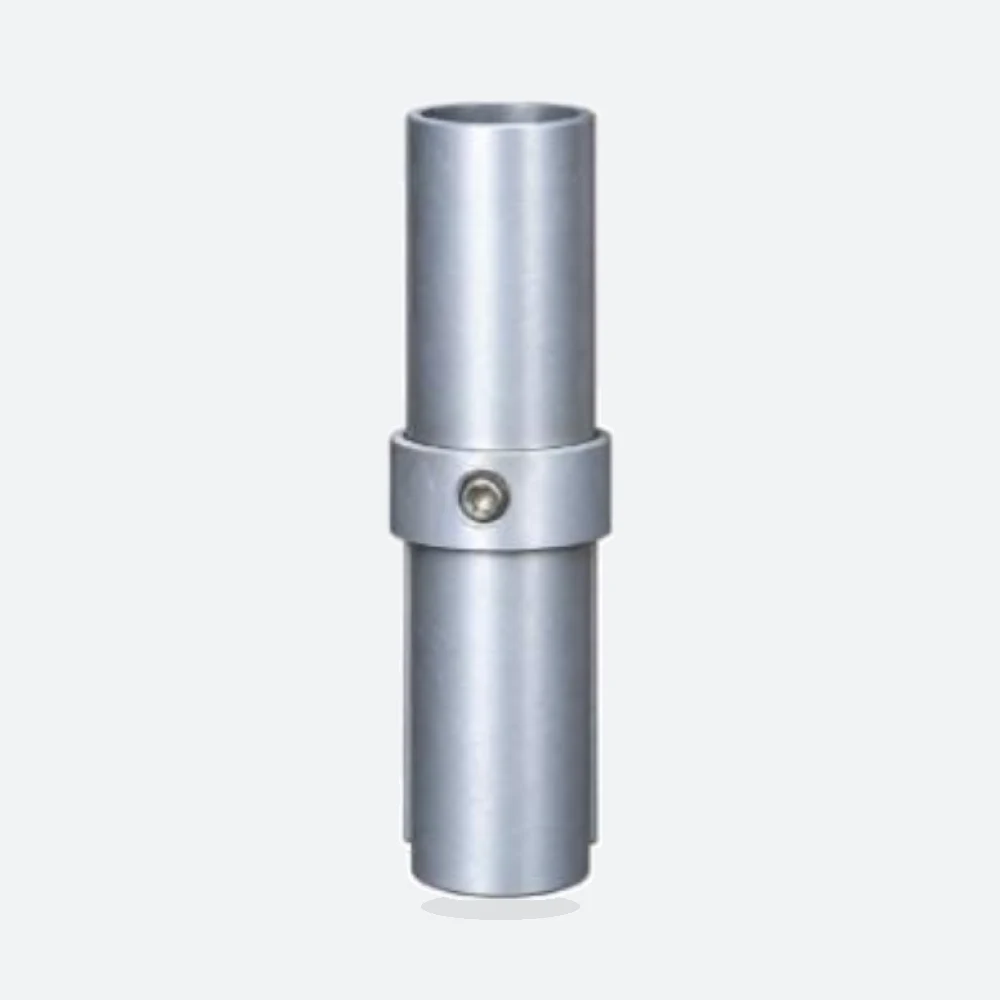

Linear Connector – TSAF-BARR-LC120
Aluminium alloy 6063-T6 connector that joins Ø36 mm barricade tubes in a straight line for a continuous run.
Used in
Specifications
| SKU | TSAF-BARR-LC120 |
|---|---|
| Material | Aluminium Alloy 6063-T6 |
| Application | Straight-Line Tube Connection |
| Compatible Tube Diameter | Ø36 mm |
| Function | Continuous Straight Barricade Run |
The TSAF-BARR-LC120 Linear Connector joins two barricade tubes end to end in the Rooftop Barricade System. It is made from aluminium alloy 6063-T6 and suits tubes of Ø36 mm.
Its function is to create a continuous straight barricade run, so the guardrail can be extended along long roof edges and parapets without gaps in the rail. Linear connectors are used together with the corner and wall connectors to follow the roof layout. Because the parts are pre-engineered, runs can be assembled on the roof without welding, and the layout can be extended later if the protected area changes.
Downloads
- Datasheet available on request — add this product to your enquiry.
Specifications are indicative. Refer to the product datasheet or ask our engineers for project-specific values.
