TSAF-BARR-BT36

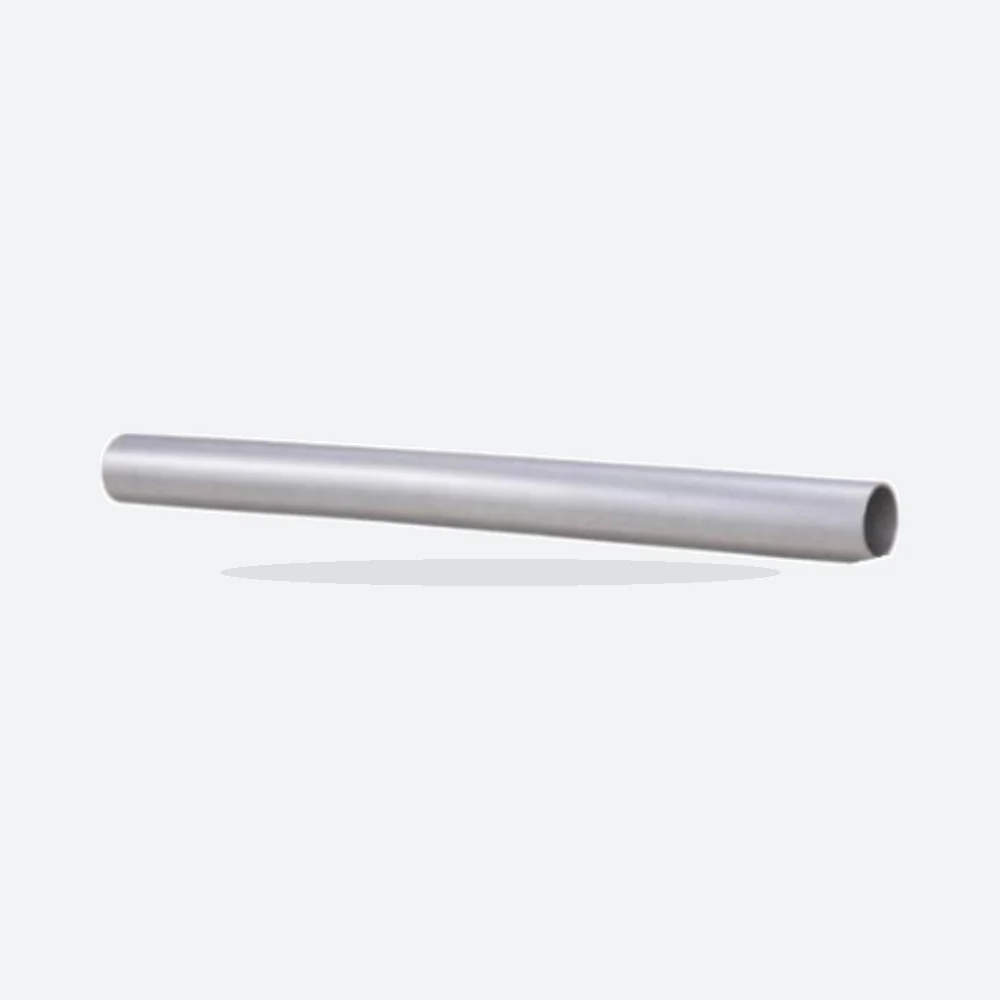

Barricade Tube – TSAF-BARR-BT36
Aluminium alloy 6063-T6 barricade tube, 36 mm outside diameter with a 2.0 mm wall, forming the horizontal rails of the guardrail.
Used in
Specifications
| SKU | TSAF-BARR-BT36 |
|---|---|
| Material | Aluminium Alloy 6063-T6 |
| Component | Barricade Tube |
| Outside Diameter | 36 mm |
| Wall Thickness | 2.0 mm |
| Function | Horizontal Barrier Element |
| Compatible Connector | Linear / Corner / Wall Connector |
The TSAF-BARR-BT36 Barricade Tube is the horizontal barrier element of the Rooftop Barricade System. It is made from aluminium alloy 6063-T6, with an outside diameter of 36 mm and a wall thickness of 2.0 mm.
The tubes are fixed to the upright posts with tube clamps and joined with the linear, corner and wall connectors in the same system. Depending on the configuration, the guardrail uses 2, 3 or 4 horizontal tubes. Open tube ends are finished with the TSAF-BARR-TEC36 tube end cap. The number of tube rows is chosen during system design.
Downloads
- Datasheet available on request — add this product to your enquiry.
Specifications are indicative. Refer to the product datasheet or ask our engineers for project-specific values.
