Rail Stopper Bracket Type-1 · TSAF-706
TSAF-706

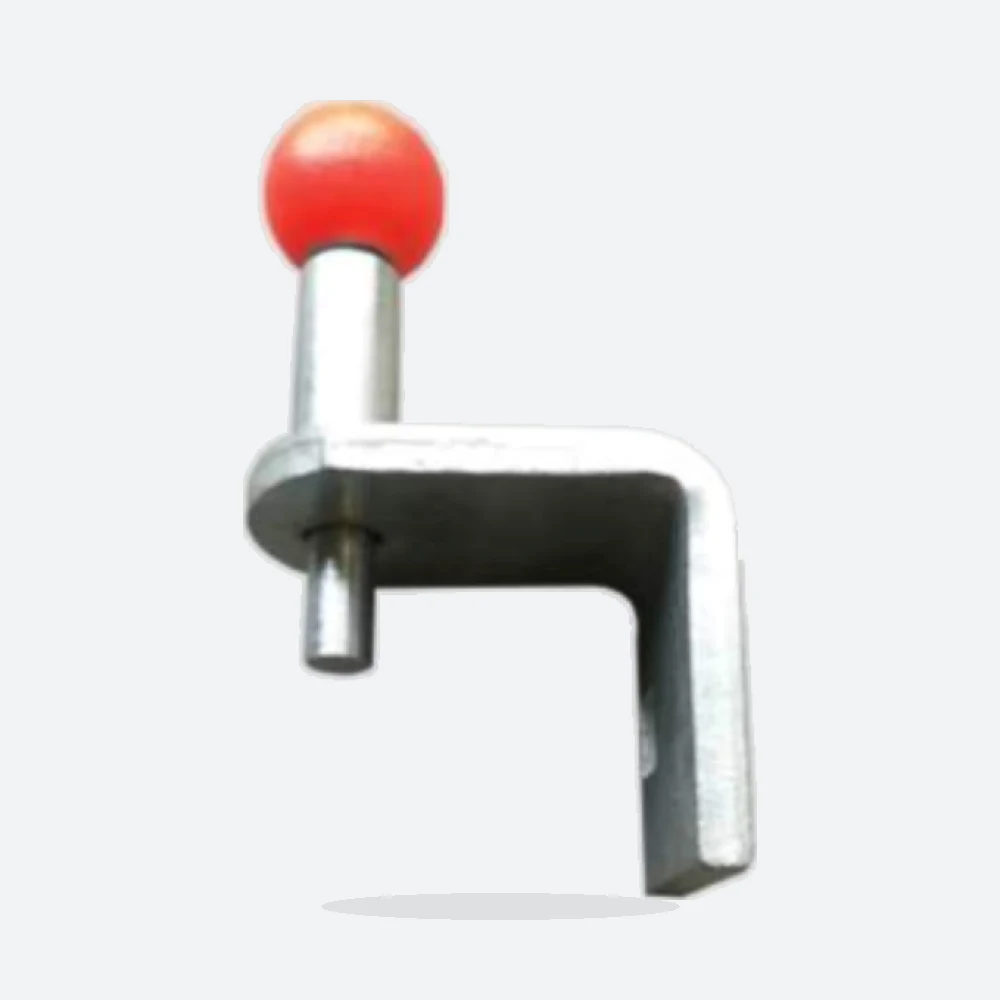

Rail Stopper Bracket Type-1 – TSAF-706
Hot-dip galvanised GI end stopper bracket that keeps the trolley on the vertical rail.
Used in
Specifications
| SKU | TSAF-706 |
|---|---|
| Material | GI |
| Finishing | HDG |
| Weight | 0.28 kg |
| Fixing | Through GI Fasteners |
The TSAF 706 Rail Stopper Bracket Type-1 is an end stopper for the rail-type Vertical Lifeline System. It is made from GI with a hot-dip galvanised (HDG) finish, weighs 0.28 kg and is fixed through GI fasteners.
End stoppers are fitted at the rail extremities so that the fall arrestor trolley cannot move out of the rail. The catalogue offers two stopper designs: this galvanised Type-1 bracket and the stainless steel Type-2 bracket (TSAF 207). The type used depends on the rail and the site arrangement.
Downloads
- Datasheet available on request — add this product to your enquiry.
Specifications are indicative. Refer to the product datasheet or ask our engineers for project-specific values.
