TSAF-108
Stainless Steel Wire Rope Dia 8 mm
8 mm diameter SS-316 wire rope in 7x7 construction, supplied per metre, used as the lifeline…
Vertical Kit · TSAF-200
TSAF-200

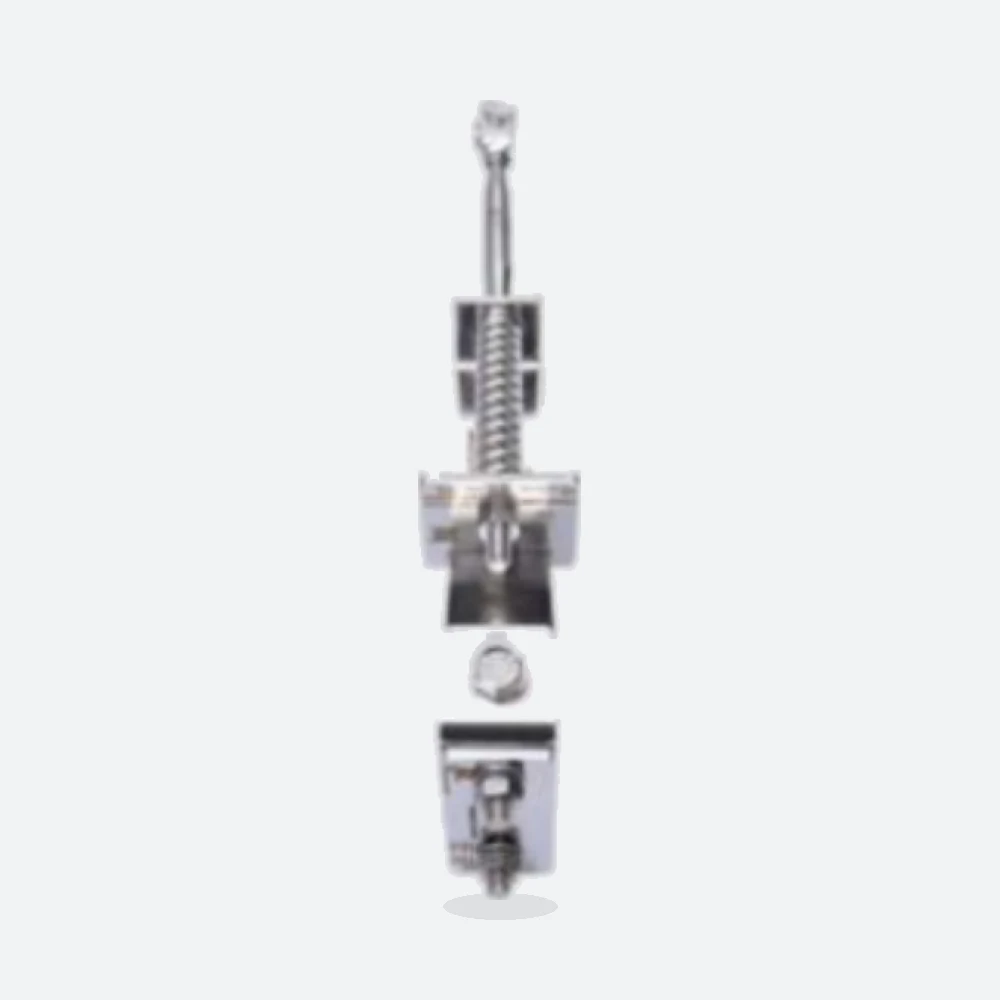

Vertical Kit – TSAF-200
Stainless steel kit for the rope-type Vertical Lifeline System, made in SS-316 with a natural finish and fixed through SS-304 fasteners.
Used in
Specifications
| SKU | TSAF-200 |
|---|---|
| Material | SS-316 |
| Finishing | Natural Finish |
| Breaking Strength | 35kN |
| Fixing | Through SS-304 Fasteners |
| Weight | 3.5 kg |
The TSAF 200 Vertical Kit is the core assembly of the rope-type Vertical Lifeline System. It is made from SS-316 stainless steel with a natural finish, and it is fixed to the ladder or structure through SS-304 fasteners. The catalogue lists a breaking strength of 35 kN and a weight of 3.5 kg.
In a rope-type installation the kit works with the 8 mm stainless steel wire rope (TSAF 108), the cable guide intermediate brackets (TSAF 201) and the climber's rope grab and karabiner. It is used on fixed ladders on wind turbines, communication towers, chimneys, warehouses and oil storage tanks. TsaF engineers confirm the kit configuration, mounting position and ladder interface for each site during system design.
Downloads
- Datasheet available on request — add this product to your enquiry.
Specifications are indicative. Refer to the product datasheet or ask our engineers for project-specific values.
Works with
Compatible components
TSAF-201
Cable Guide Intermediate Bracket
SS-316 intermediate bracket that guides the wire rope of a rope-type vertical lifeline, installed at 9-10…
TSAF-204

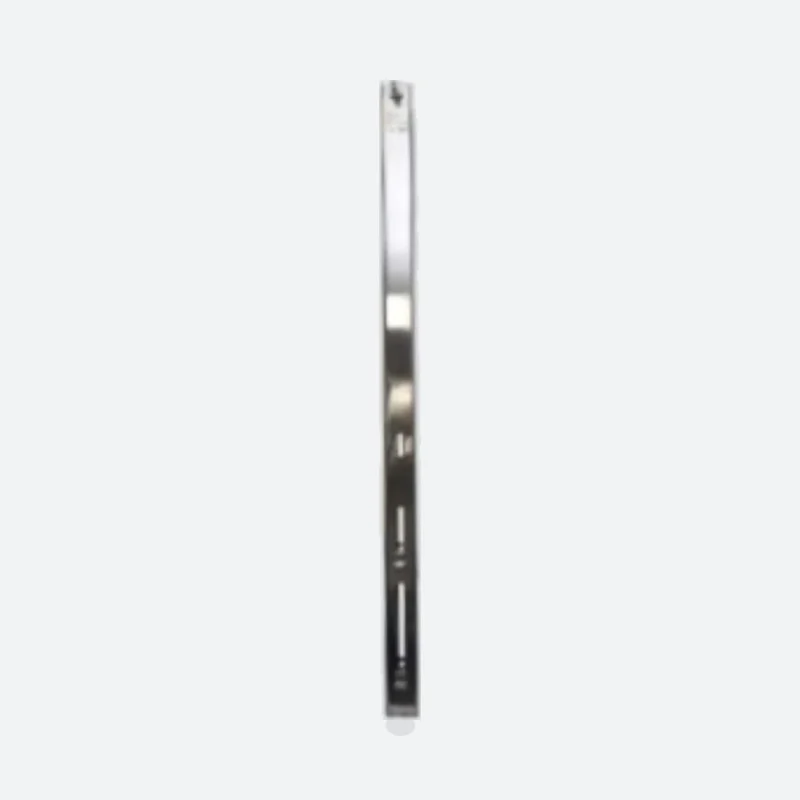

Extension Arm
1.75 m SS-316 extension arm that lets climbers stay connected to the vertical lifeline at the…
TSAF-131
Karabiner
Alloy steel screw-gate karabiner with a breaking strength of 23 kN, used to connect users to…
