Karabiner · TSAF-131
TSAF-131

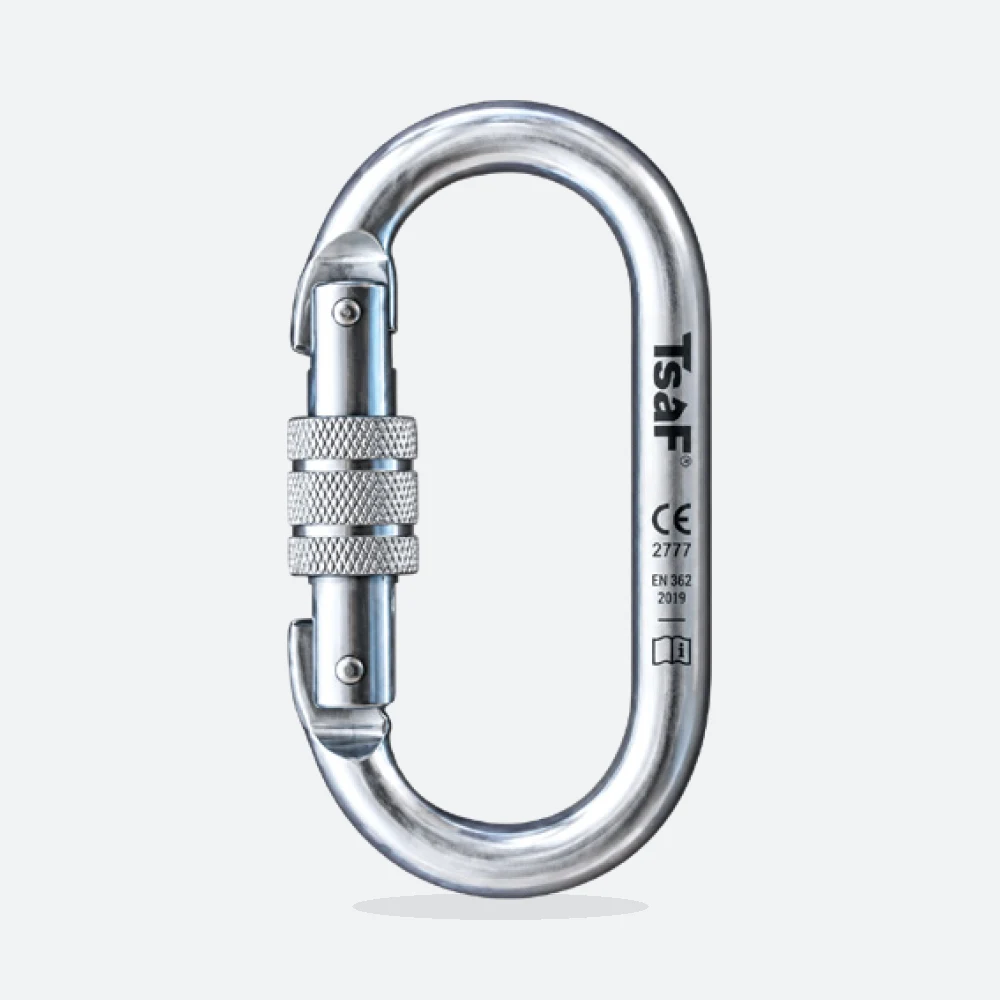

Karabiner – TSAF-131
Alloy steel screw-gate karabiner with a breaking strength of 23 kN, used to connect users to TsaF vertical, horizontal and overhead lifelines.
Specifications
| SKU | TSAF-131 |
|---|---|
| Material | Alloy Steel |
| Finishing | Natural Finish |
| Weight | 0.26 kg |
| Breaking Strength | 23 kN |
The TSAF 131 Karabiner is the connector used across TsaF lifeline systems to link the user's harness, lanyard or fall arrester to the lifeline device. It is made from alloy steel with a natural finish, weighs 0.26 kg and has a breaking strength of 23 kN as stated in the catalogue.
The karabiner appears in the Vertical Lifeline System (with the rope grab or rail trolley), the Horizontal Lifeline System and the Overhead Lifeline System. Users should check the gate and locking sleeve before each use and follow the inspection guidance supplied with the product.
Downloads
- Datasheet available on request — add this product to your enquiry.
Specifications are indicative. Refer to the product datasheet or ask our engineers for project-specific values.
