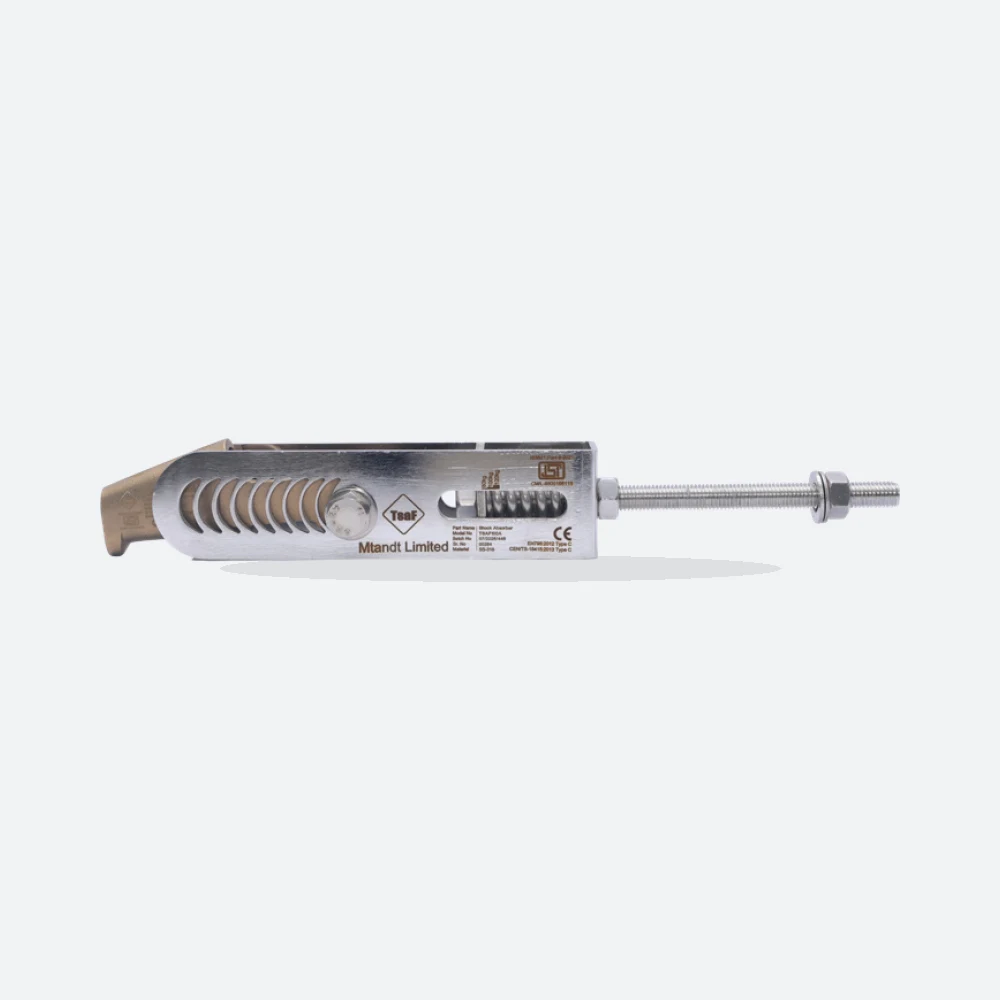

Integrated Shock Absorber cum Tensioner – TSAF-100A
SS-316 and AB-2 in-line unit that tensions the lifeline cable and absorbs energy, with an activating force of 12 kN.
Specifications
| SKU | TSAF-100A |
|---|---|
| Material | SS-316 & AB-2 |
| Finishing | Natural Finish |
| Weight | 1.12 kg |
| Activating Force | 12kN |
| Max. Breaking Strength | 50kN |
| Min. Breaking Strength | 15kN |
| Range | 12-50kN |
The TSAF 100A Integrated Shock Absorber cum Tensioner combines two functions in one in-line unit: it maintains tension in the lifeline cable, and it absorbs energy in the event of a fall. The catalogue explains that in-line shock absorbers are used where loads may exceed the structural ability of the support structure, and that they have no internal components that cannot be visually inspected.
The unit is made from SS-316 and AB-2 with a natural finish and weighs 1.12 kg. The catalogue lists an activating force of 12 kN, a maximum breaking strength of 50 kN, a minimum breaking strength of 15 kN and a range of 12-50 kN. It is used in the Horizontal Lifeline System and the Overhead Lifeline System.
Downloads
- Datasheet available on request — add this product to your enquiry.
Specifications are indicative. Refer to the product datasheet or ask our engineers for project-specific values.
Works with
Compatible components
TSAF-131
Karabiner
Alloy steel screw-gate karabiner with a breaking strength of 23 kN, used to connect users to…
TSAF-102B
End Swage Less (Wedge Socket I-Bolt Type)
SS-316 and AB-2 swageless end termination that grips the lifeline cable mechanically, with open and close…
TSAF-104

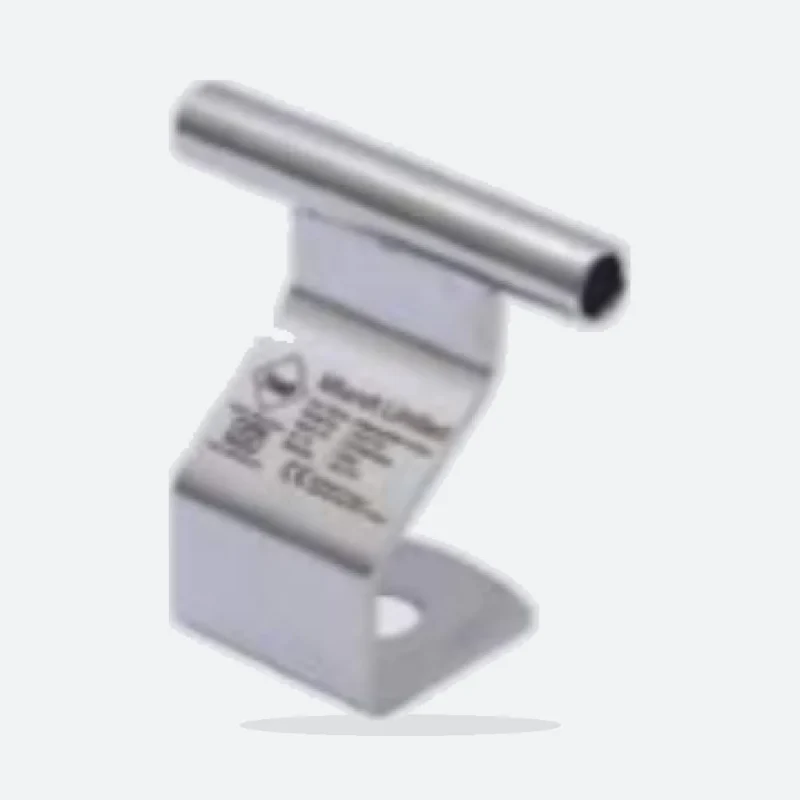

Intermediate Cable Bracket for HLLS
