TSAF-108
Stainless Steel Wire Rope Dia 8 mm
8 mm diameter SS-316 wire rope in 7x7 construction, supplied per metre, used as the lifeline…
End Swage Less (Wedge Socket I-Bolt Type) · TSAF-102B
TSAF-102B

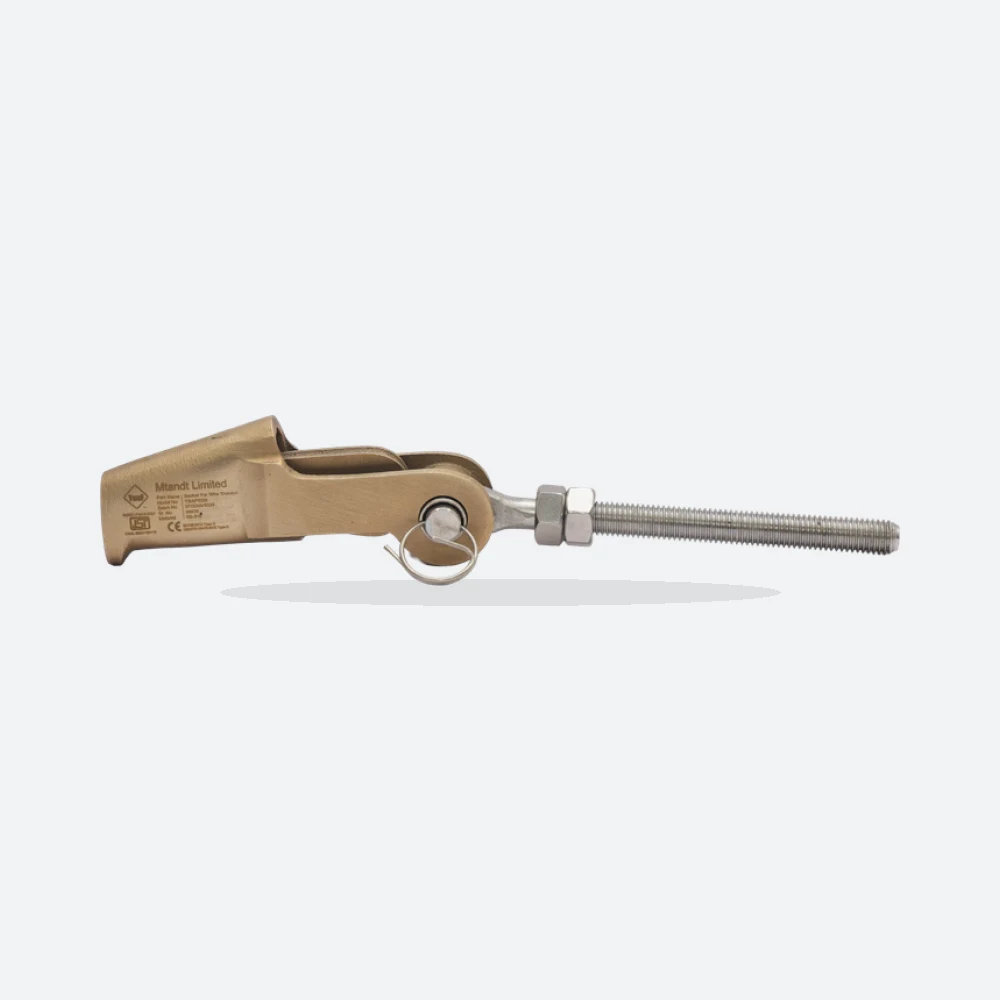

End Swage Less (Wedge Socket I-Bolt Type) – TSAF-102B
SS-316 and AB-2 swageless end termination that grips the lifeline cable mechanically, with open and close lengths of 250 mm and 160 mm.
Specifications
| SKU | TSAF-102B |
|---|---|
| Material | SS-316 & AB-2 |
| Finishing | Natural Finish |
| Weight | 0.580 kg |
| Open Length | 250mm |
| Close Length | 160mm |
| Max. Breaking Strength | 42kN |
| Min. Breaking Strength | 22kN |
The TSAF 102B End Swage Less is a wedge-socket, I-bolt type termination for the lifeline cable. The catalogue explains that it is installed in-line with the anchor point and grips the wire mechanically without swaging, securing both ends of the lifeline system.
It is made from SS-316 and AB-2 with a natural finish and weighs 0.580 kg. The open length is 250 mm and the close length is 160 mm. The catalogue lists a maximum breaking strength of 42 kN and a minimum breaking strength of 22 kN. The termination is used in the Horizontal Lifeline System and the Overhead Lifeline System with the TSAF 108 wire rope.
Downloads
- Datasheet available on request — add this product to your enquiry.
Specifications are indicative. Refer to the product datasheet or ask our engineers for project-specific values.
Works with
Compatible components
TSAF-131
Karabiner
Alloy steel screw-gate karabiner with a breaking strength of 23 kN, used to connect users to…
TSAF-100A
Integrated Shock Absorber cum Tensioner
SS-316 and AB-2 in-line unit that tensions the lifeline cable and absorbs energy, with an activating…
TSAF-104
Intermediate Cable Bracket for HLLS
SS-316 intermediate bracket that holds the horizontal lifeline cable in position, installed at intervals of 8…
