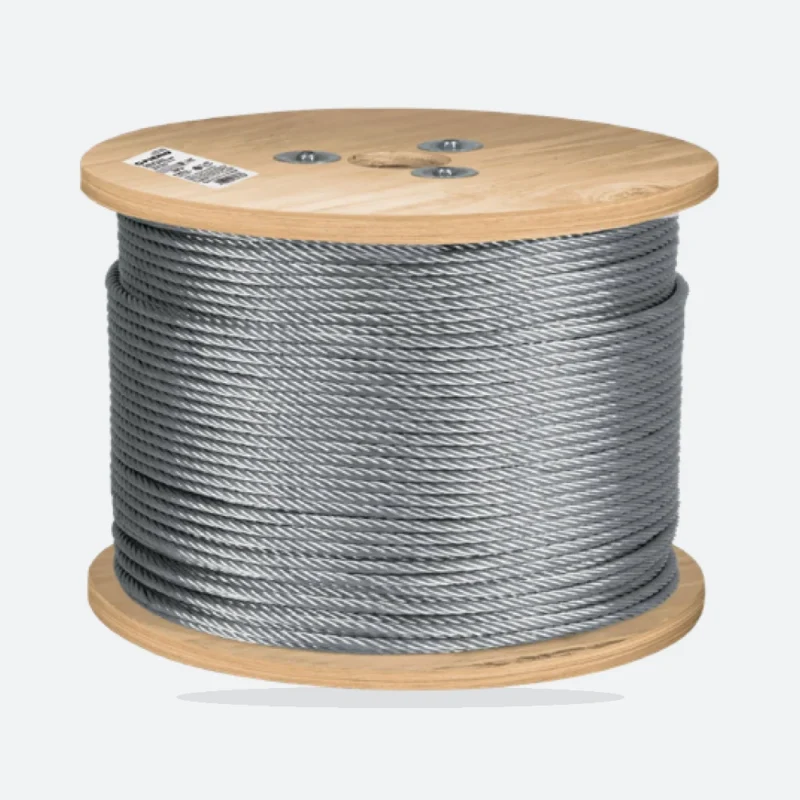

TSAF-108
Stainless Steel Wire Rope Dia 8 mm
8 mm diameter SS-316 wire rope in 7x7 construction, supplied per metre, used as the lifeline…

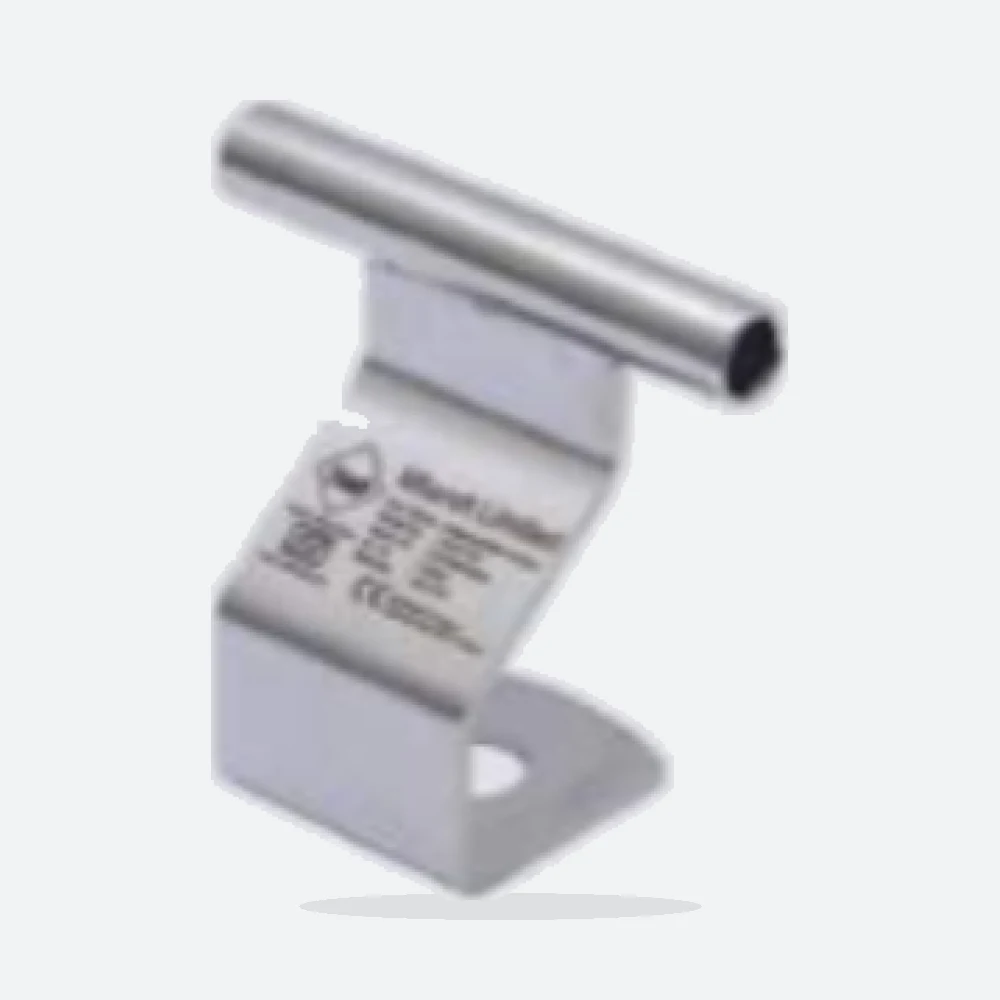

Intermediate Cable Bracket for HLLS · TSAF-104
TSAF-104
Intermediate Cable Bracket for HLLS – TSAF-104
SS-316 intermediate bracket that holds the horizontal lifeline cable in position, installed at intervals of 8 m to 12 m.
Used in
Specifications
| SKU | TSAF-104 |
|---|---|
| Material | SS-316 |
| Finishing | Natural Finish |
| Weight | 0.385 kg |
| Fixing | Through SS-304 Fasteners |
The TSAF 104 Intermediate Cable Bracket supports the cable of the Horizontal Lifeline System along its length. The catalogue describes intermediate brackets as holding the wire in position all along the line, installed at intervals of 8 m to 12 m.
The bracket is made from SS-316 with a natural finish, weighs 0.385 kg and is fixed through SS-304 fasteners to the roof post. Its open profile lets the TSAF 130A travelling trolley pass through without the worker un-clipping from the line. Bracket spacing is set during system design according to the roof layout and the line length.
Downloads
- Datasheet available on request — add this product to your enquiry.
Specifications are indicative. Refer to the product datasheet or ask our engineers for project-specific values.
Works with
Compatible components

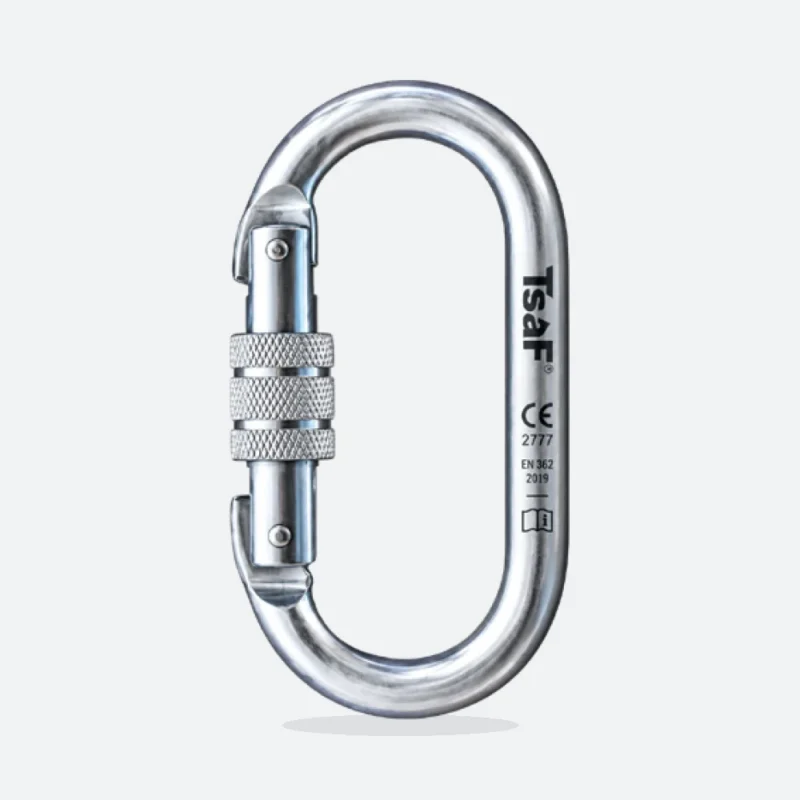

TSAF-131
Karabiner
Alloy steel screw-gate karabiner with a breaking strength of 23 kN, used to connect users to…

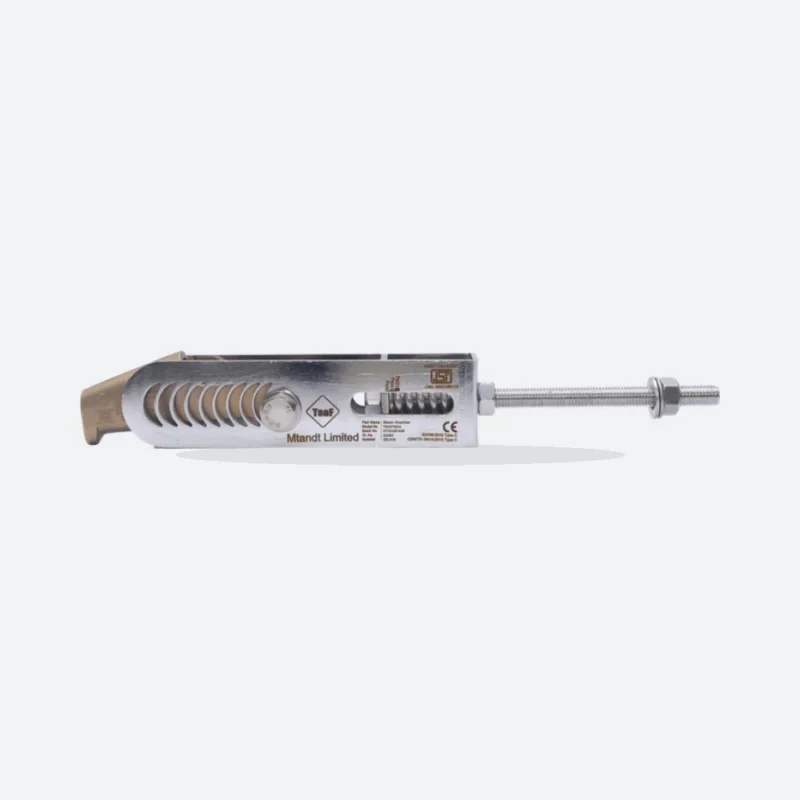

TSAF-100A
Integrated Shock Absorber cum Tensioner
SS-316 and AB-2 in-line unit that tensions the lifeline cable and absorbs energy, with an activating…

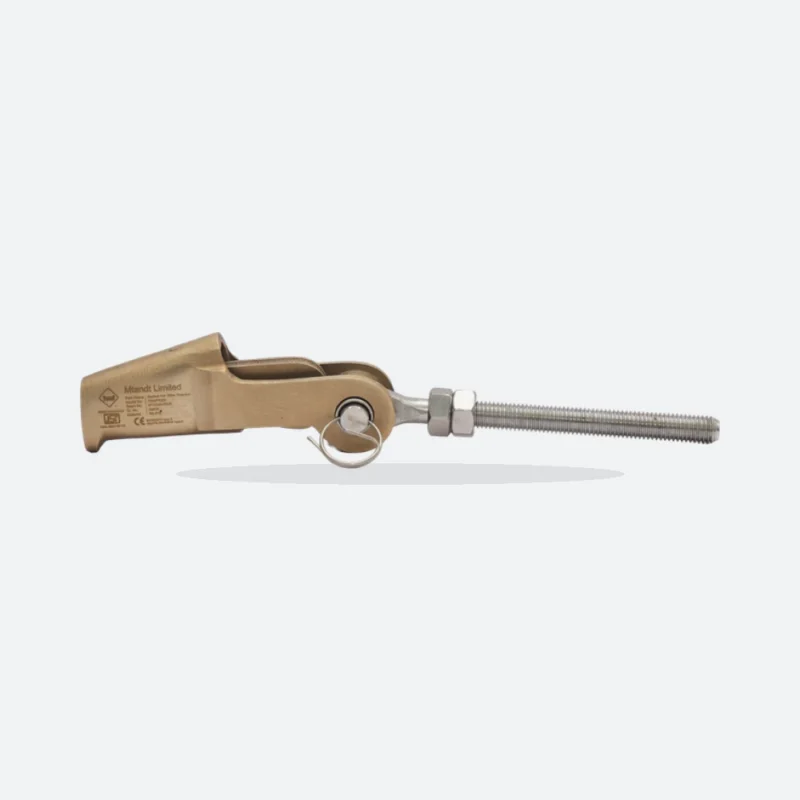

TSAF-102B
End Swage Less (Wedge Socket I-Bolt Type)
SS-316 and AB-2 swageless end termination that grips the lifeline cable mechanically, with open and close…
