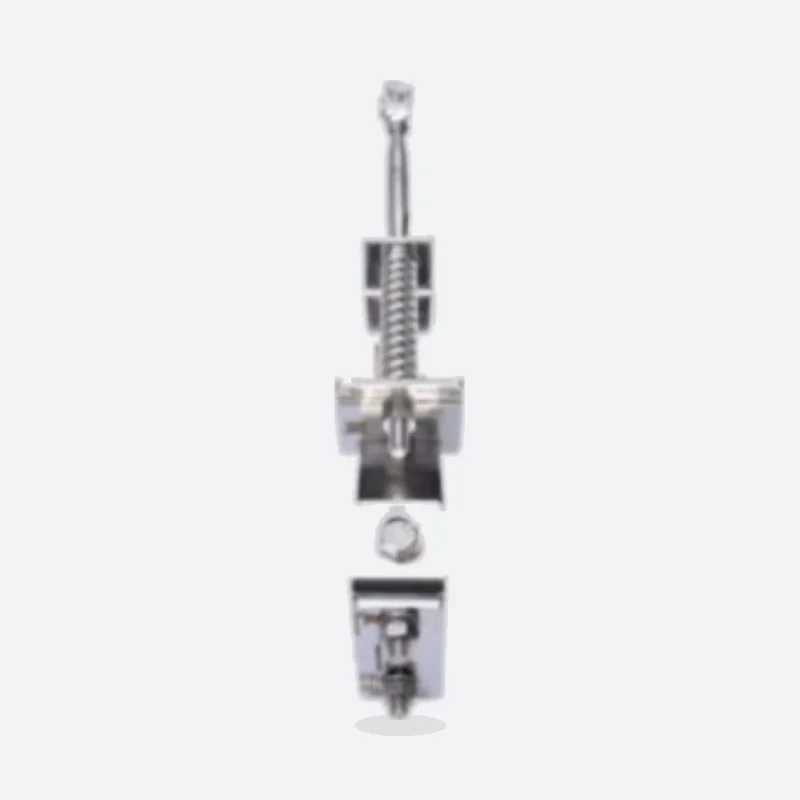

TSAF-200
Vertical Kit
Stainless steel kit for the rope-type Vertical Lifeline System, made in SS-316 with a natural finish…
Cable Guide Intermediate Bracket · TSAF-201
TSAF-201

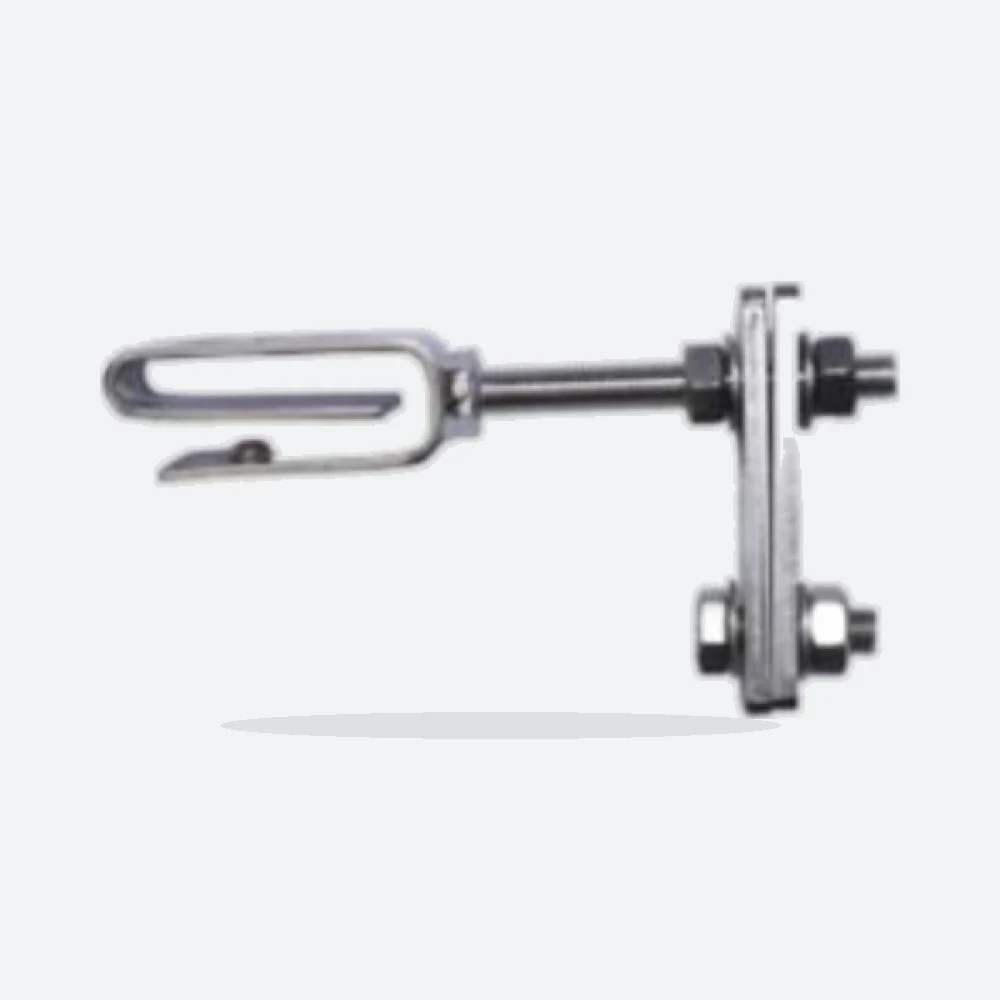

Cable Guide Intermediate Bracket – TSAF-201
SS-316 intermediate bracket that guides the wire rope of a rope-type vertical lifeline, installed at 9-10 m intervals.
Used in
Specifications
| SKU | TSAF-201 |
|---|---|
| Material | SS-316 |
| Finishing | Natural Finish |
| Range | 9-10 m |
| Weight | 0.77 kg |
| Fixing | Through SS-304 Fasteners |
The TSAF 201 Cable Guide Intermediate Bracket holds the wire rope of a rope-type Vertical Lifeline System in position along the ladder. It is made from SS-316 with a natural finish and is fixed through SS-304 fasteners. The catalogue gives a range of 9-10 m, which matches the recommended installation interval for intermediates on rope-type systems, and a weight of 0.77 kg.
Intermediate brackets keep the cable aligned with the ladder over long climbs, such as those on towers, chimneys, tanks and tall buildings. The number of brackets needed depends on the total climb height and is set during system design.
Downloads
- Datasheet available on request — add this product to your enquiry.
Specifications are indicative. Refer to the product datasheet or ask our engineers for project-specific values.
