Rail Connector · TSAF-703
TSAF-703

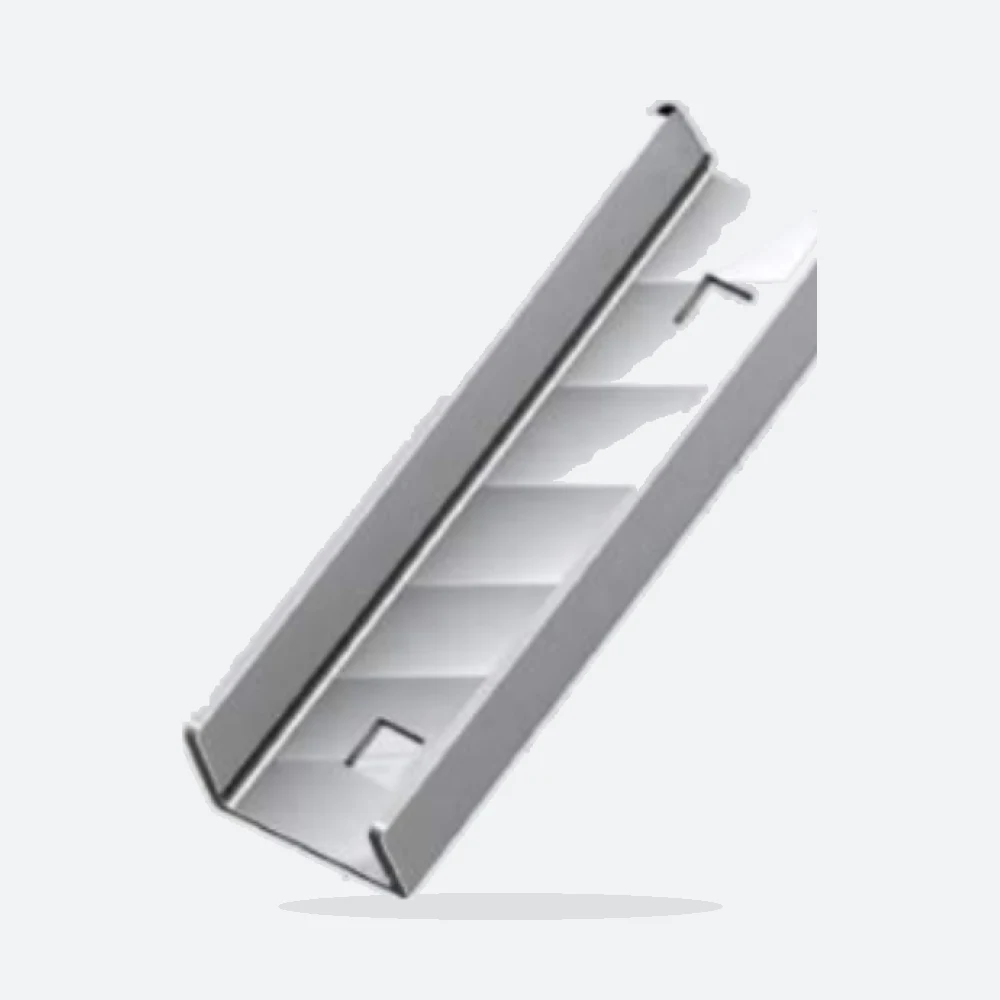

Rail Connector – TSAF-703
SS-304 connector that joins lengths of rail in the rail-type Vertical Lifeline System.
Used in
Specifications
| SKU | TSAF-703 |
|---|---|
| Material | SS-304 |
| Finishing | Natural Finish |
| Weight | 0.57 kg |
| Fixing | Through GI Fasteners |
The TSAF 703 Rail Connector joins individual rail lengths in the rail-type Vertical Lifeline System, so the TSAF 202 fall arrestor trolley can travel continuously along the full height of the climb. It is made from SS-304 with a natural finish, weighs 0.57 kg and is fixed through GI fasteners.
Rail connectors are used wherever the climb is longer than a single rail section. The number required depends on the total rail length and is set during system design. Joints are checked for alignment during installation and at each annual inspection.
Downloads
- Datasheet available on request — add this product to your enquiry.
Specifications are indicative. Refer to the product datasheet or ask our engineers for project-specific values.
