Single Wheel Non Pass Through Trolley · TSAF-408
TSAF-408

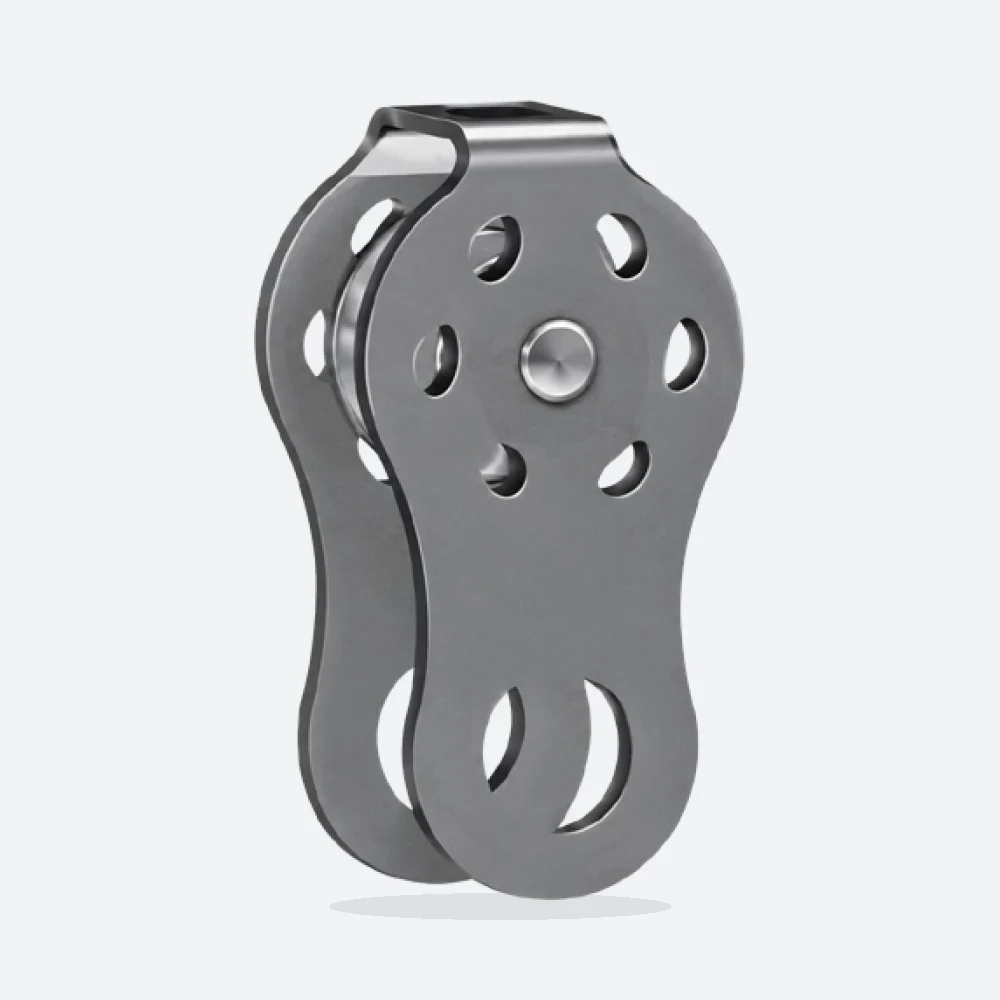

Single Wheel Non Pass Through Trolley – TSAF-408
Compact SS-304 single-wheel trolley for overhead lifeline sections without intermediate brackets, with a minimum breaking strength of 15 kN.
Used in
Specifications
| SKU | TSAF-408 |
|---|---|
| Material | SS-304 |
| Finishing | Natural Finish |
| Min. Breaking Strength | 15kN |
| Weight | 0.25 kg |
The TSAF-408 Single Wheel Non Pass Through Trolley is a compact trolley for the Overhead Lifeline System. As a non pass-through design, it is intended for line sections where it does not need to travel past intermediate brackets, such as short spans over a single loading bay.
The trolley is made from SS-304 with a natural finish and weighs 0.25 kg, the lightest of the overhead trolleys in the catalogue. The catalogue lists a minimum breaking strength of 15 kN. It provides the attachment point for the worker's retractable fall arrestor or lanyard.
Downloads
- Datasheet available on request — add this product to your enquiry.
Specifications are indicative. Refer to the product datasheet or ask our engineers for project-specific values.
