Double Wheel Pass Through Trolley · TSAF-407
TSAF-407
Double Wheel Pass Through Trolley – TSAF-407
SS-304 double-wheel trolley that passes through intermediate brackets on overhead lifelines, with a minimum breaking strength of 15 kN.
Used in
Specifications
| SKU | TSAF-407 |
|---|---|
| Material | SS-304 |
| Finishing | Natural Finish |
| Min. Breaking Strength | 15kN |
| Weight | 0.8 kg |

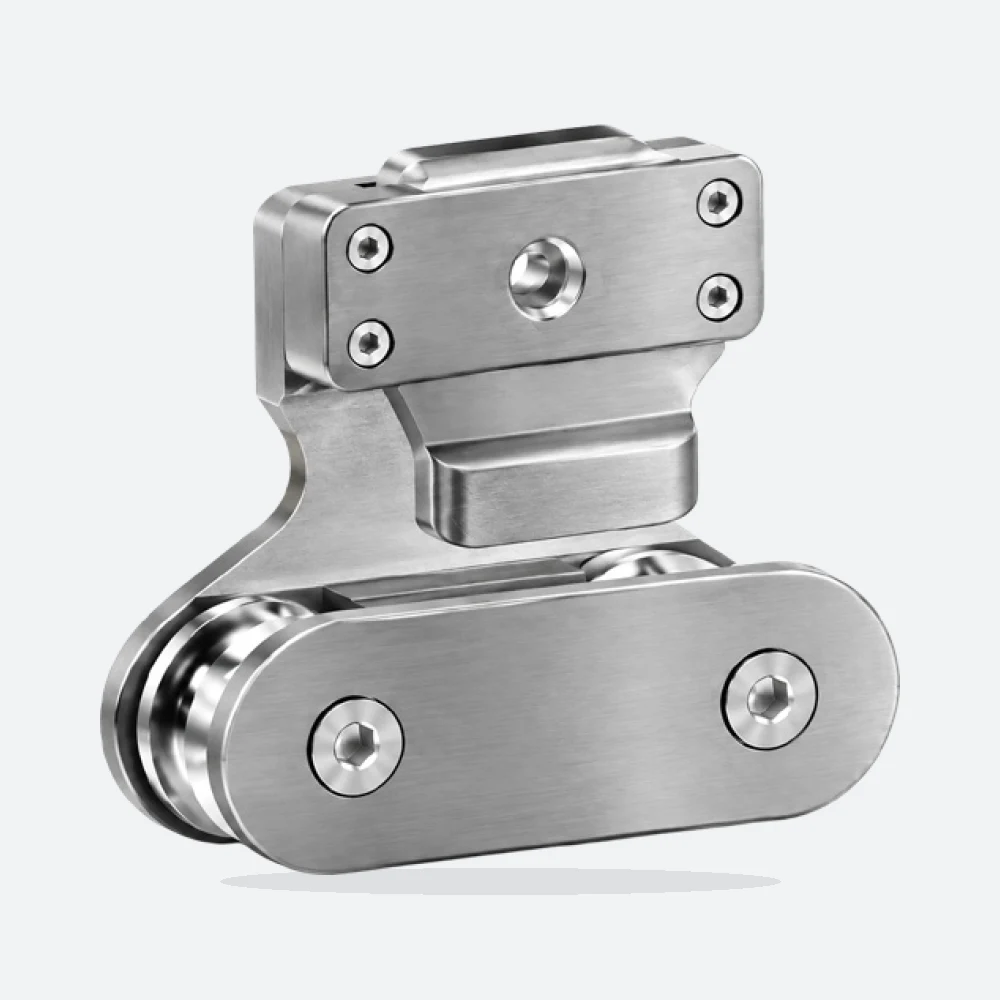

The TSAF-407 Double Wheel Pass Through Trolley runs on the cable of the Overhead Lifeline System and is designed to pass through intermediate brackets. This lets the worker move along a long line without stopping to re-attach at each support, which the catalogue lists as a key benefit of the overhead system.
The trolley is made from SS-304 with a natural finish and weighs 0.8 kg. The catalogue lists a minimum breaking strength of 15 kN. It provides the attachment point for the worker's retractable fall arrestor or lanyard.
Downloads
- Datasheet available on request — add this product to your enquiry.
Specifications are indicative. Refer to the product datasheet or ask our engineers for project-specific values.
