Double Wheel Non Pass Through Trolley · TSAF-406
TSAF-406

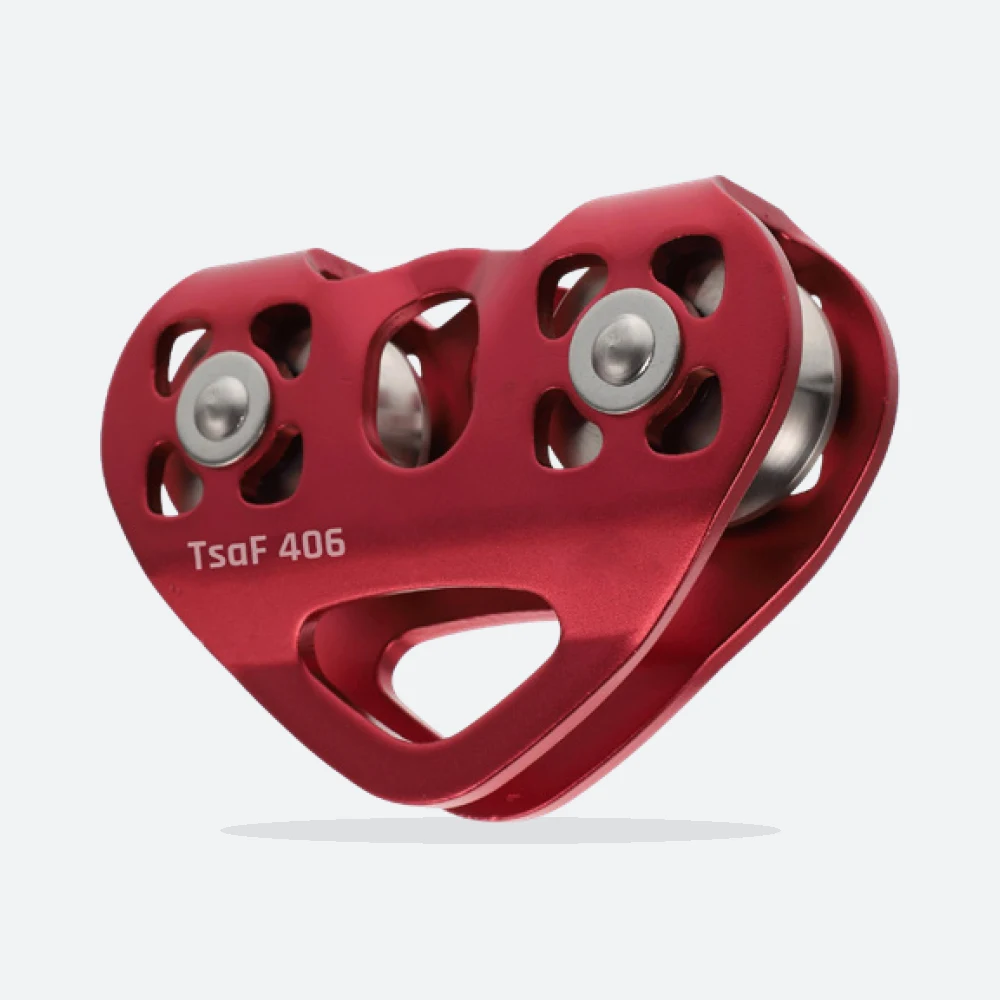

Double Wheel Non Pass Through Trolley – TSAF-406
Anodised aluminium alloy double-wheel trolley for overhead lifelines without intermediate brackets, with a minimum breaking strength of 15 kN.
Used in
Specifications
| SKU | TSAF-406 |
|---|---|
| Material | Aluminium Alloy |
| Finishing | Anodizing |
| Min. Breaking Strength | 15kN |
| Weight | 0.425 kg |
The TSAF-406 Double Wheel Non Pass Through Trolley runs on the cable of the Overhead Lifeline System and provides the attachment point for the worker's retractable fall arrestor or lanyard. As a non pass-through trolley, it is intended for line sections where it does not need to travel past intermediate brackets.
The trolley is made from aluminium alloy with an anodised finish and weighs 0.425 kg. The catalogue lists a minimum breaking strength of 15 kN. The trolley type is selected during system design according to the line layout and the number of intermediate supports.
Downloads
- Datasheet available on request — add this product to your enquiry.
Specifications are indicative. Refer to the product datasheet or ask our engineers for project-specific values.
