Aluminium Rail · TSAF-205
TSAF-205

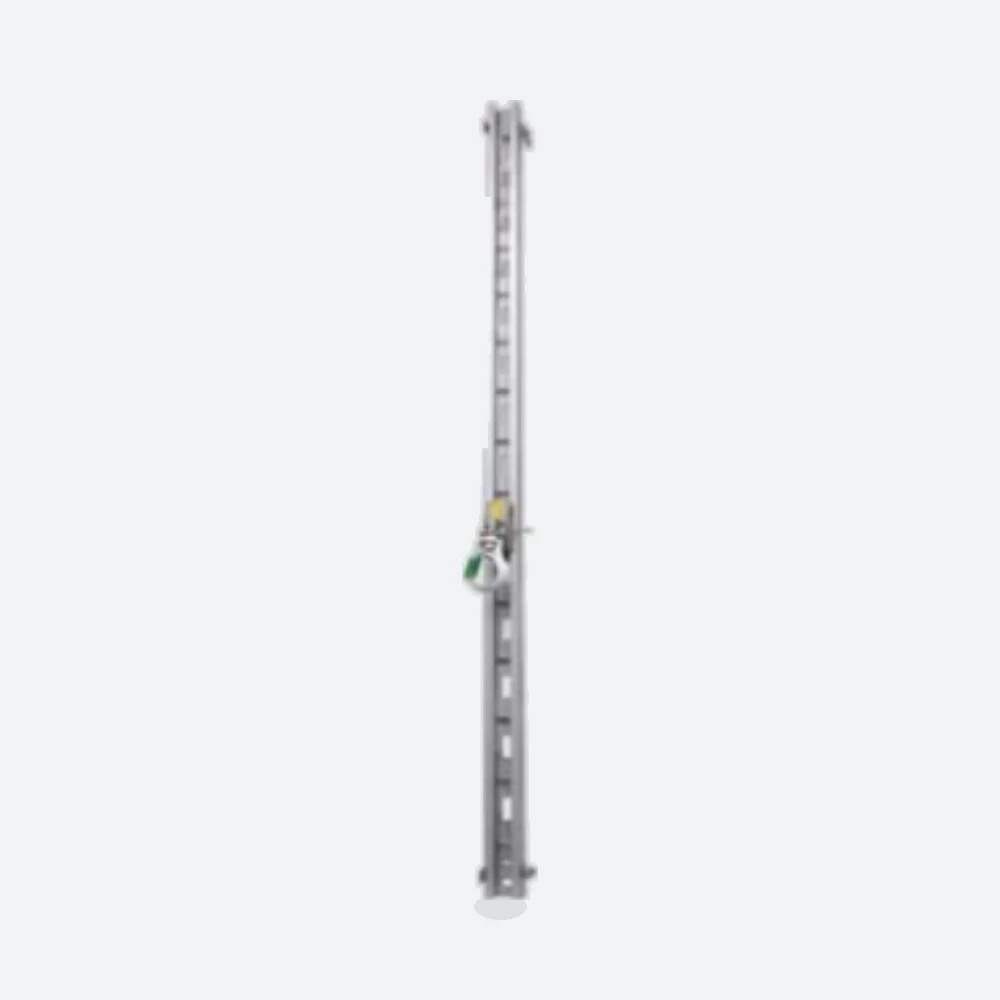

Aluminium Rail – TSAF-205
Aluminium 6063 T6 rail with a natural finish for the rail-type Vertical Lifeline System, with a minimum breaking strength of 15 kN.
Used in
Specifications
| SKU | TSAF-205 |
|---|---|
| Material | 6063 T6 |
| Finishing | Natural Finish |
| Min Breaking strength | 15kN |
| Fixing | Through SS-304, GI Fasteners |
| Weight | 2.425 kg/Mtr. |
The TSAF 205 Aluminium Rail is the rigid rail of the rail-type Vertical Lifeline System. It is made from 6063 T6 aluminium with a natural finish. The catalogue lists a minimum breaking strength of 15 kN and a weight of 2.425 kg per metre for the aluminium version.
The rail is mounted on the ladder or structure and guides the TSAF 202 fall arrestor trolley along the full height of the climb. The catalogue describes the enclosed rail as allowing the trolley to move with minimal resistance while protecting the wheels. Rail lengths are joined with TSAF 703 rail connectors, fixed to ladders with TSAF 708 connectors and closed with end stoppers. A steel version is available as TSAF 705.
Downloads
- Datasheet available on request — add this product to your enquiry.
Specifications are indicative. Refer to the product datasheet or ask our engineers for project-specific values.
