Fall Arrestor Trolley · TSAF-202
TSAF-202

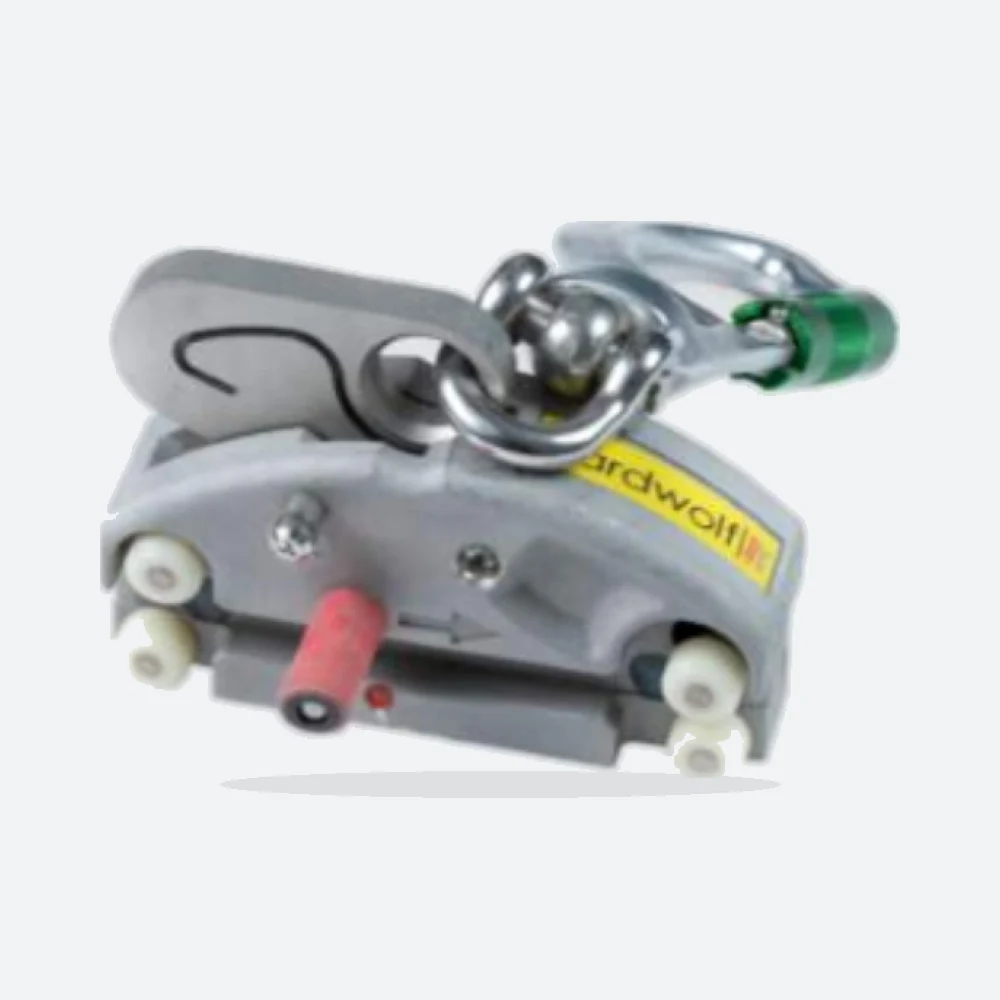

Fall Arrestor Trolley – TSAF-202
Aluminium alloy and steel trolley that runs on the vertical rail, with an inbuilt shock absorber and a uni-directional locking system.
Used in
Specifications
| SKU | TSAF-202 |
|---|---|
| Material | Aluminium Alloy & Steel |
| Finishing | Natural Finish |
| Min Breaking strength | 15kN |
| Weight | 1.05 kg |
The TSAF 202 Fall Arrestor Trolley connects the climber to the rail of the rail-type Vertical Lifeline System. It is made from aluminium alloy and steel with a natural finish, weighs 1.05 kg and has a minimum breaking strength of 15 kN as stated in the catalogue.
The catalogue describes the trolley as having an inbuilt shock absorber feature that locks over the rail in the event of a fall, and a uni-directional locking system that prevents it from sliding down on its own when not in use. The climber connects to the trolley with a karabiner. End stoppers at the bottom of the rail prevent the trolley from moving out of the rail.
Downloads
- Datasheet available on request — add this product to your enquiry.
Specifications are indicative. Refer to the product datasheet or ask our engineers for project-specific values.
Works with
Compatible components
TSAF-108
Stainless Steel Wire Rope Dia 8 mm
8 mm diameter SS-316 wire rope in 7x7 construction, supplied per metre, used as the lifeline…
TSAF-201
Cable Guide Intermediate Bracket
SS-316 intermediate bracket that guides the wire rope of a rope-type vertical lifeline, installed at 9-10…
TSAF-204
Extension Arm
1.75 m SS-316 extension arm that lets climbers stay connected to the vertical lifeline at the…
