Roof Post for Intermediate · TSAF-117
TSAF-117

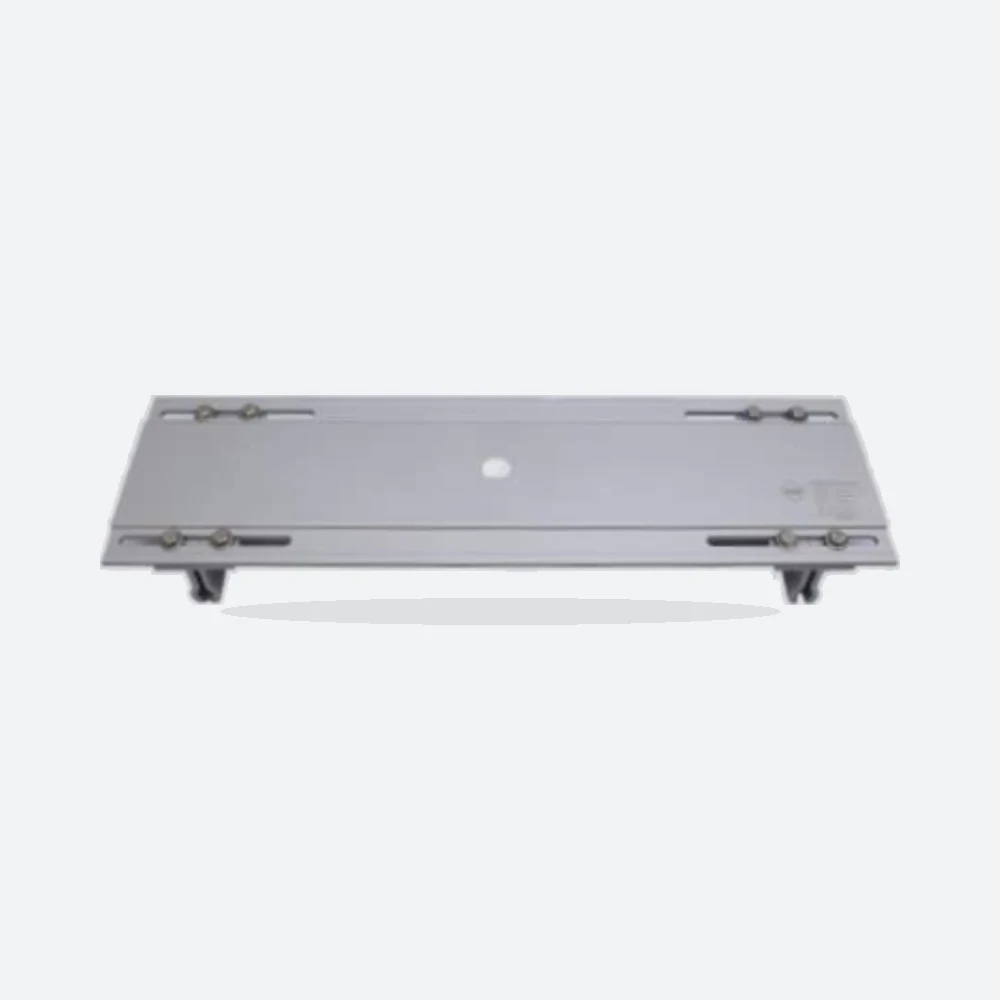

Roof Post for Intermediate – TSAF-117
Anodised AL 6063 T6 roof post, 680 x 195 x 69.5 mm, for intermediate brackets of a horizontal lifeline.
Used in
Specifications
| SKU | TSAF-117 |
|---|---|
| Size (LxBxH) | 680 x 195 x 69.5mm |
| Material | AL 6063 T6 |
| Finishing | Anodizing Natural Finish |
| Fixing | Through SS-304 Fasteners |
The TSAF 117 Roof Post is an aluminium base for mounting intermediate cable brackets of the Horizontal Lifeline System. It measures 680 x 195 x 69.5 mm (L x B x H), is made from AL 6063 T6 with an anodised natural finish and is fixed through SS-304 fasteners.
It is paired with the TSAF 116 end and corner post of the same height. Intermediate posts are placed along the line at the bracket spacing set during system design. The post is selected to suit the roof sheet profile confirmed during the site assessment.
Downloads
- Datasheet available on request — add this product to your enquiry.
Specifications are indicative. Refer to the product datasheet or ask our engineers for project-specific values.
