Roof Post for End and Corners · TSAF-116
TSAF-116

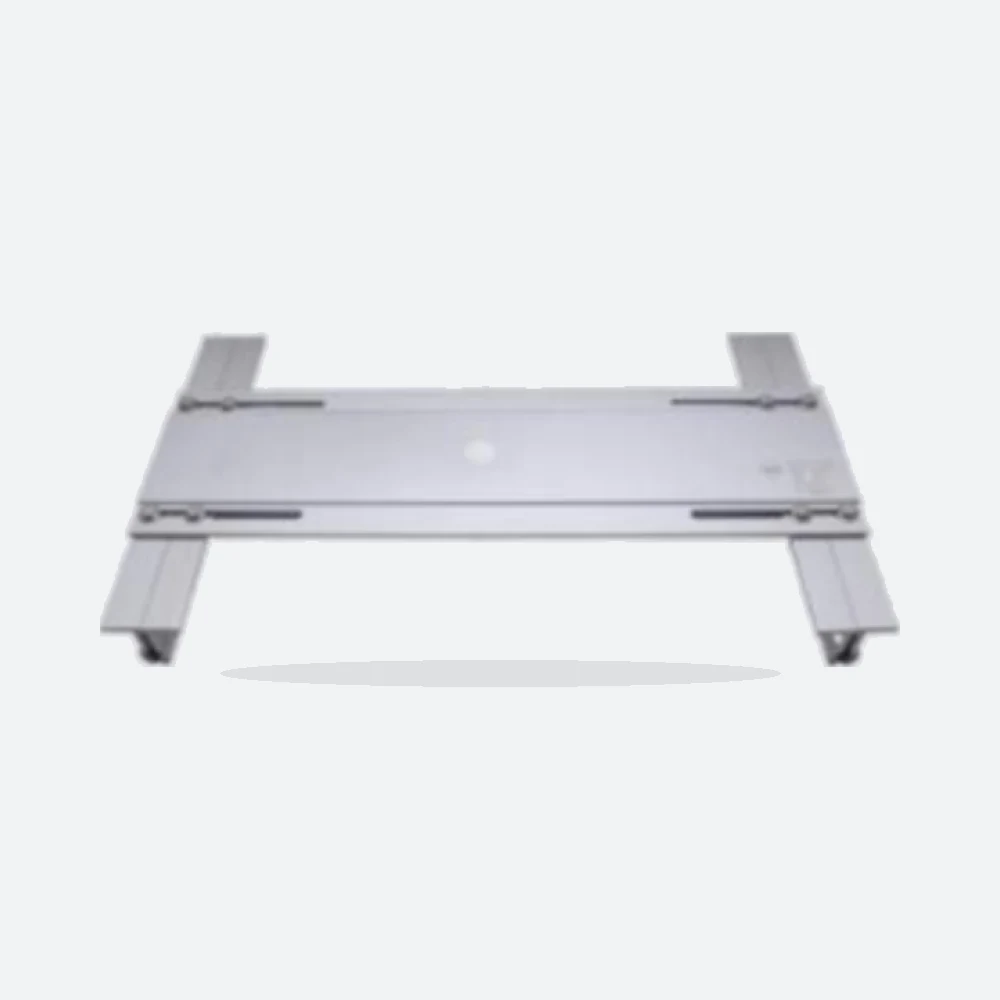

Roof Post for End and Corners – TSAF-116
Anodised AL 6063 T6 roof post, 680 x 395 x 69.5 mm, for the ends and corners of a horizontal lifeline.
Used in
Specifications
| SKU | TSAF-116 |
|---|---|
| Size (LxBxH) | 680 x 395 x 69.5mm |
| Material | AL 6063 T6 |
| Finishing | Anodizing Natural Finish |
| Fixing | Through SS-304 Fasteners |
The TSAF 116 Roof Post is an aluminium base for mounting end and corner components of the Horizontal Lifeline System. It measures 680 x 395 x 69.5 mm (L x B x H), is made from AL 6063 T6 with an anodised natural finish and is fixed through SS-304 fasteners.
It is paired with the TSAF 117 intermediate post of the same height. End and corner posts carry the termination hardware, such as the shock absorber cum tensioner, the swageless end or the corner bracket. The post is selected to suit the roof sheet profile confirmed during the site assessment.
Downloads
- Datasheet available on request — add this product to your enquiry.
Specifications are indicative. Refer to the product datasheet or ask our engineers for project-specific values.
