Roof Post for Intermediate · TSAF-111
TSAF-111

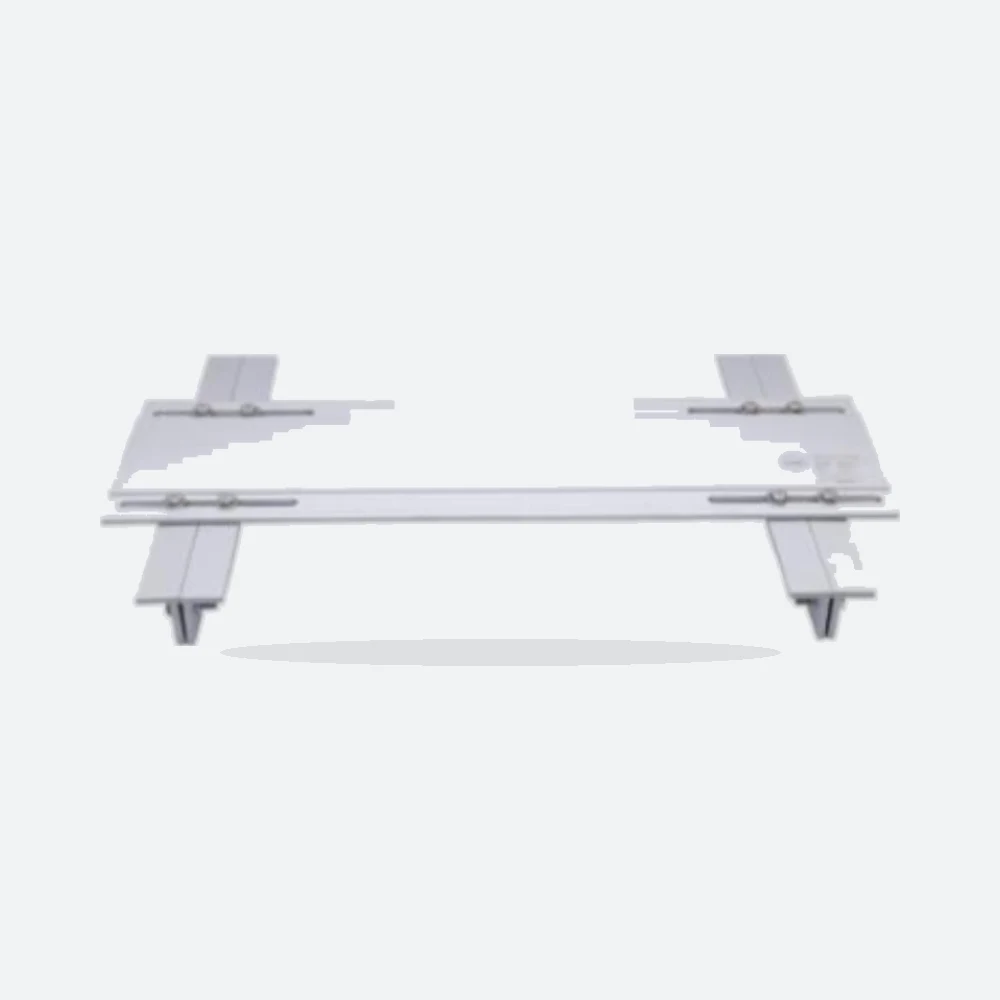

Roof Post for Intermediate – TSAF-111
Anodised AL 6063 T6 roof post, 680 x 395 x 59 mm, for intermediate brackets of a horizontal lifeline.
Used in
Specifications
| SKU | TSAF-111 |
|---|---|
| Size (LxBxH) | 680 x 395 x 59mm |
| Material | AL 6063 T6 |
| Finishing | Anodizing Natural Finish |
| Fixing | Through SS-304 Fasteners |
The TSAF 111 Roof Post is an aluminium base for mounting intermediate cable brackets of the Horizontal Lifeline System on metal roofs. It measures 680 x 395 x 59 mm (L x B x H), is made from AL 6063 T6 with an anodised natural finish and is fixed through SS-304 fasteners.
Intermediate posts are placed along the line at the bracket spacing set during design, typically every 8 m to 12 m according to the catalogue. The post is selected to suit the roof sheet profile and panel width confirmed during the site assessment.
Downloads
- Datasheet available on request — add this product to your enquiry.
Specifications are indicative. Refer to the product datasheet or ask our engineers for project-specific values.
