Roof Post for End and Corners · TSAF-110
TSAF-110

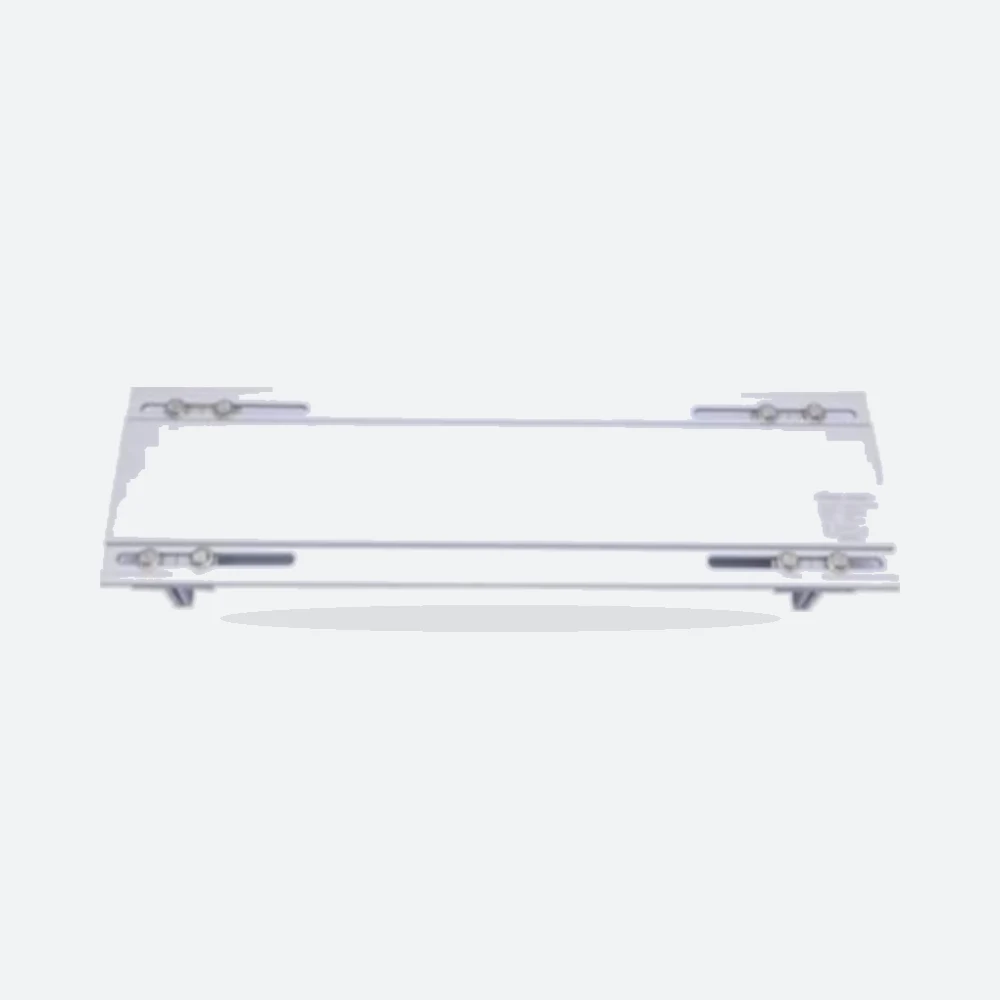

Roof Post for End and Corners – TSAF-110
Anodised AL 6063 T6 roof post, 680 x 196 x 59 mm, for the ends and corners of a horizontal lifeline.
Used in
Specifications
| SKU | TSAF-110 |
|---|---|
| Size (LxBxH) | 680 x 196 x 59mm |
| Material | AL 6063 T6 |
| Finishing | Anodizing Natural Finish |
| Fixing | Through SS-304 Fasteners |
The TSAF 110 Roof Post is an aluminium base for mounting end and corner components of the Horizontal Lifeline System on metal roofs. It measures 680 x 196 x 59 mm (L x B x H), is made from AL 6063 T6 with an anodised natural finish and is fixed through SS-304 fasteners.
TsaF roof posts are chosen to match the roof sheet profile and panel width. For standing seam roofs the catalogue describes aluminium clamps as a non-penetrating solution that needs only basic hand tools to install. The correct post is selected during system design after the roof profile has been confirmed on site.
Downloads
- Datasheet available on request — add this product to your enquiry.
Specifications are indicative. Refer to the product datasheet or ask our engineers for project-specific values.
