Fixture Mounting Base · TSOSAR03J
TSOSAR03J
Fixture Mounting Base – TSOSAR03J
Frame-type fixture mounting base for attaching the TsaF FlexiDavit Modular Arm to existing structures or fixtures.
Used in
Specifications
| SKU | TSOSAR03J |
|---|---|
| Model | TSOSAR03J |
| Base type | Fixture mounting base |
| Used with | TsaF FlexiDavit Modular Arm FD-MA-100 |

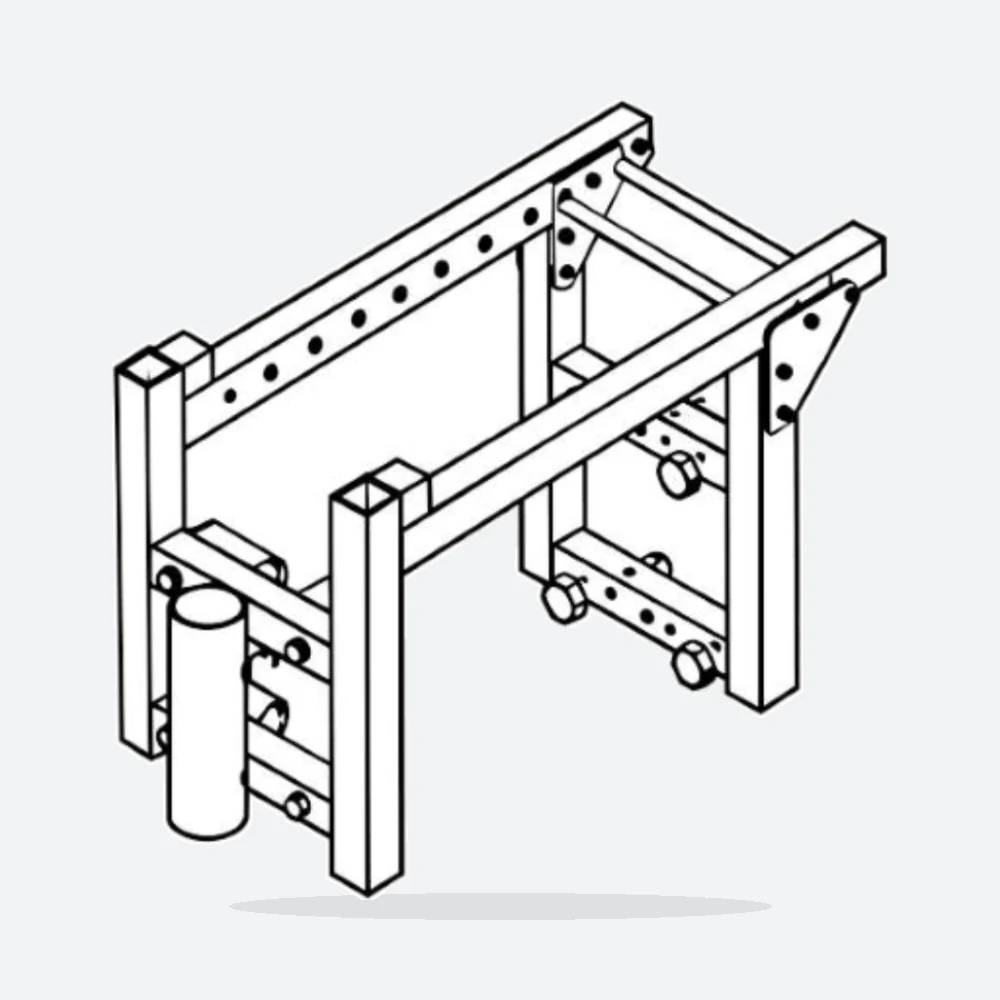

The TSOSAR03J Fixture Mounting Base is one of six mounting bases for the TsaF FlexiDavit Modular Arm (FD-MA-100) in the Anchorline & Rescue System. The catalogue drawing shows a frame with an adjustable hole pattern and a socket for the davit arm, for mounting onto a fixture or structure.
A fixture mount allows the rescue arm to be used where neither floor nor wall mounting is practical, such as on equipment frames or existing steelwork. Its suitability for a given structure is confirmed during rescue planning and system design.
Downloads
- Datasheet available on request — add this product to your enquiry.
Specifications are indicative. Refer to the product datasheet or ask our engineers for project-specific values.
