TsaF FlexiDavit Modular Arm · FD-MA-100
FD-MA-100

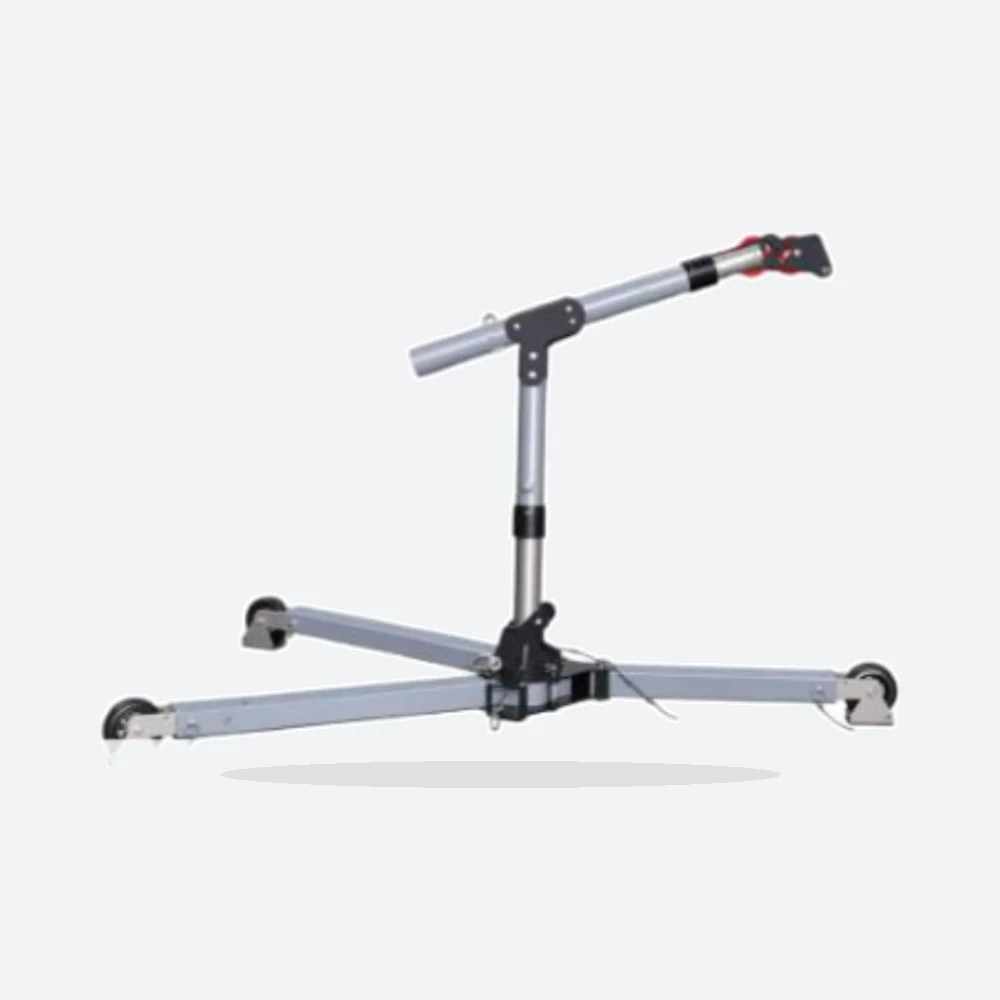

TsaF FlexiDavit Modular Arm – FD-MA-100
Portable stainless steel davit arm for rescue at height, with a maximum load of 12 kN, mountable on floor, wall, embedded and portable bases.
Used in
Specifications
| SKU | FD-MA-100 |
|---|---|
| Material | Stainless Steel 304/316 (A2/A4 optional) |
| Colour | Black / Grey |
| Maximum Load | 12kN |
| System Requirement | Limiter |
| Force Analysis | Vertical / 45° / Horizontal |
| Maintenance Cycle | Recommended once per Year |
| Service Life | A2: 10 Years; A4: 20 Years, conditional |
The TsaF FlexiDavit Modular Arm (FD-MA-100) is a portable davit system for rescue at height and part of the Anchorline & Rescue System. The catalogue describes it as mountable on a range of bases, including floor, wall, embedded and portable bases, to suit each site, allowing quick setup and controlled retrieval of a worker after a fall.
The arm is made from stainless steel 304/316 (A2/A4 optional) and is supplied in black or grey. It has a maximum load of 12 kN and requires a limiter as part of the system. The catalogue lists force analysis for vertical, 45° and horizontal directions, a recommended maintenance cycle of once per year, and a service life of 10 years for A2 and 20 years for A4, conditional.
Downloads
- Datasheet available on request — add this product to your enquiry.
Specifications are indicative. Refer to the product datasheet or ask our engineers for project-specific values.
Works with
Compatible components
TSOSAR03H
Bolt-down Floor Base
Bolt-down floor base for mounting the TsaF FlexiDavit Modular Arm.
TSOSAR03L
Side Mounting Base
Side mounting base for fixing the TsaF FlexiDavit Modular Arm to a wall or vertical structure.
TSOSAR03Y
Concrete Embedded Base
Base cast into concrete to provide a permanent mounting point for the TsaF FlexiDavit Modular Arm.
