Intermediate Cable Bracket for OHLLS · TSAF-401
TSAF-401

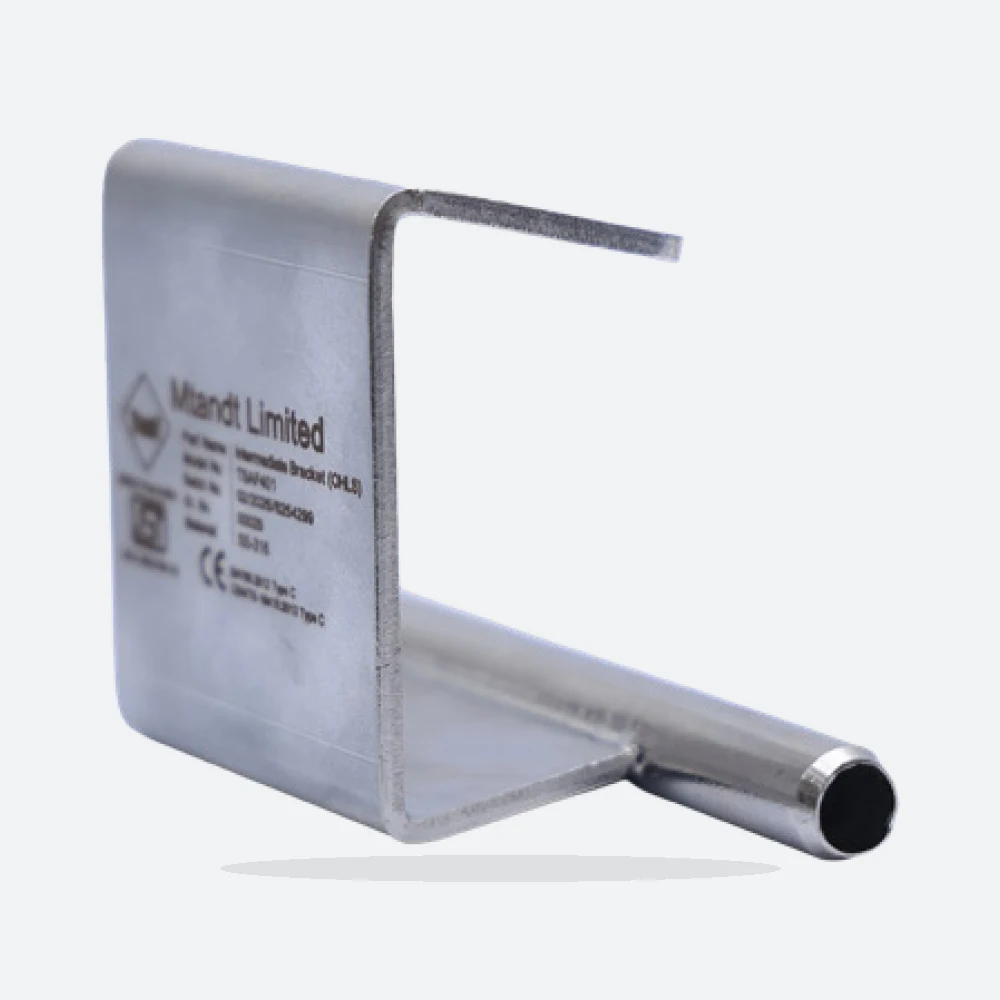

Intermediate Cable Bracket for OHLLS – TSAF-401
SS-316 intermediate bracket that supports the overhead lifeline cable on long lines, also listed in the Mobile Anchor Series.
Specifications
| SKU | TSAF-401 |
|---|---|
| Material | SS-316 |
| Finishing | Natural Finish |
| Weight | 0.28 kg |
| Fixing | Through SS-304 Fasteners |
The TSAF-401 Intermediate Cable Bracket supports the cable of the Overhead Lifeline System on long runs. According to the catalogue, intermediate brackets are required every 5 m to 15 m on long lines.
The bracket is made from SS-316 with a natural finish, weighs 0.28 kg and is fixed through SS-304 fasteners. It is used over truck and tanker loading bays, railway sidings, crane rails, pipe racks and work over machinery. The same SKU is also listed in the catalogue's Mobile Anchor Series, which is part of the Anchorline & Rescue System.
Downloads
- Datasheet available on request — add this product to your enquiry.
Specifications are indicative. Refer to the product datasheet or ask our engineers for project-specific values.
