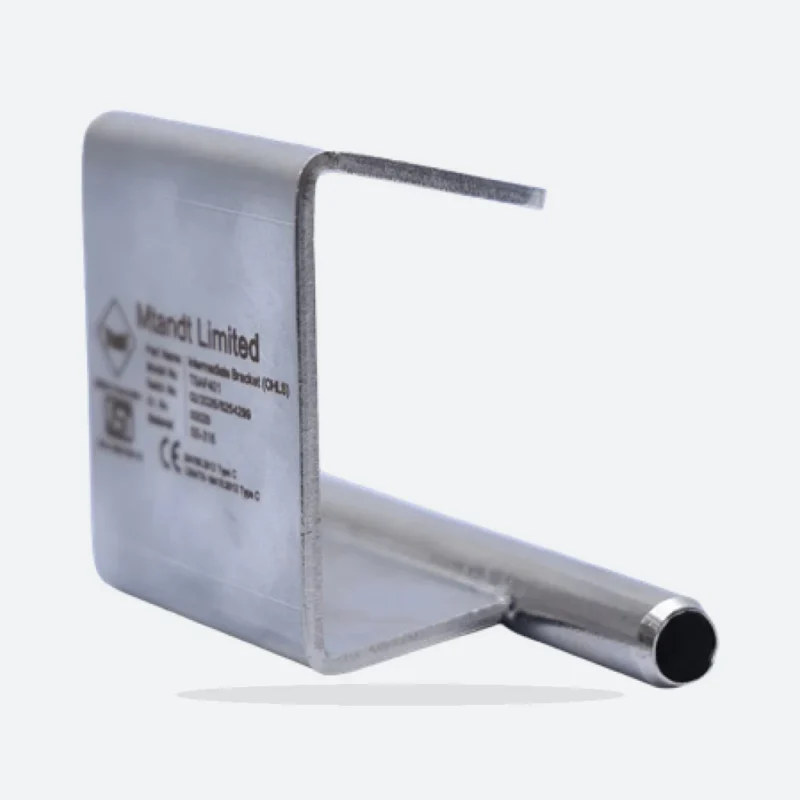

TSAF-401
Intermediate Cable Bracket for OHLLS
SS-316 intermediate bracket that supports the overhead lifeline cable on long lines, also listed in the…
TsaF TruckSafe · TS-MHP-T360

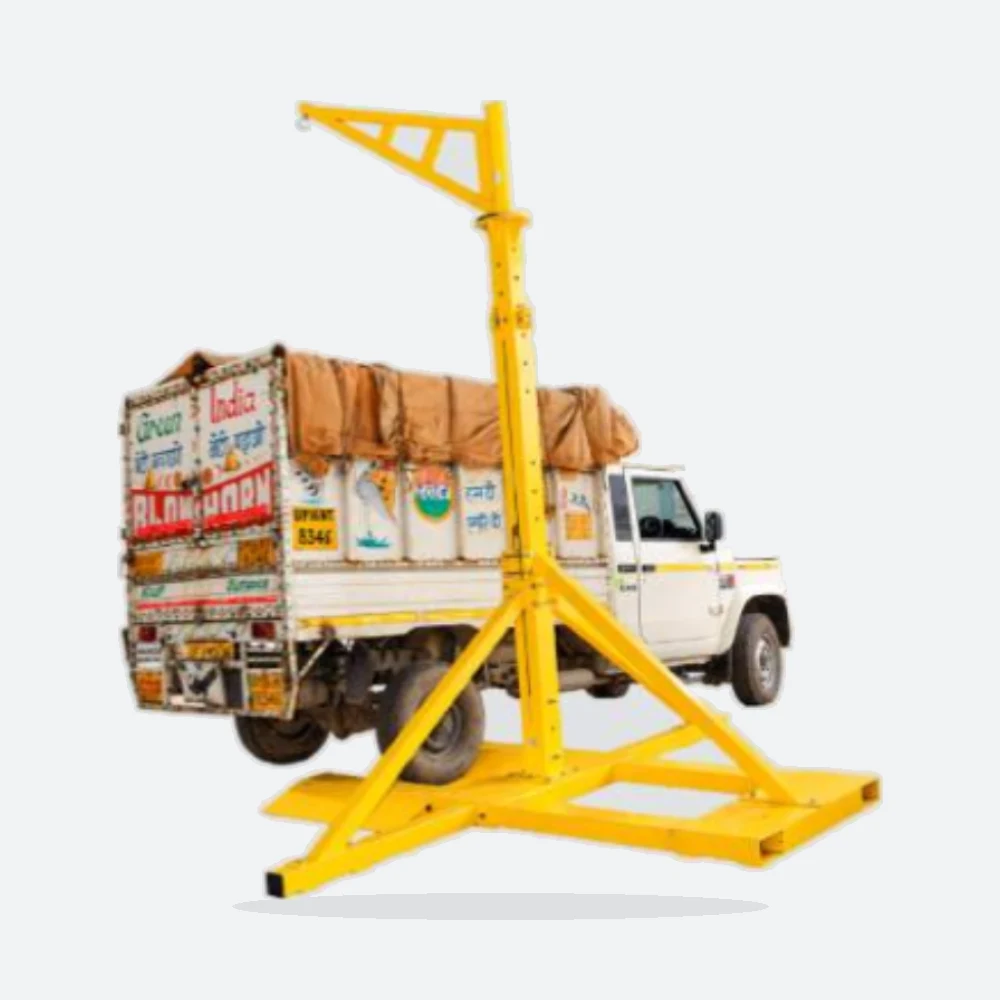

TS-MHP-T360
TsaF TruckSafe – TS-MHP-T360
Freestanding mobile anchor with a 6 m overall height and a 1.5 m swing arm that rotates 360°, for work on top of trucks and tankers.
Used in
Specifications
| SKU | TS-MHP-T360 |
|---|---|
| Material | Carbon Steel, Aluminium Alloy, Galvanized Steel |
| Overall Height | 6 mtr |
| Footprint Dimensions | 2.3 to 2.8 m |
| Swing Arm Length | 1.5 m |
| Swing Arm Rotation | 360° |
| Weight | 721 kg |
TsaF TruckSafe (TS-MHP-T360) is a freestanding mobile anchor in the Mobile Anchor Series, part of the Anchorline & Rescue System. It provides an overhead anchor point where no fixed structure is available, for example for workers on the top of trucks and tankers at loading areas.
It is made from carbon steel, aluminium alloy and galvanised steel. The overall height is 6 m and the footprint dimensions are 2.3 to 2.8 m. The swing arm is 1.5 m long and rotates through 360°. The unit weighs 721 kg. The catalogue lists applications including roof hatches, skylight guarding, roof perimeters, loading docks and warehouse traffic lanes.
Downloads
- Datasheet available on request — add this product to your enquiry.
Specifications are indicative. Refer to the product datasheet or ask our engineers for project-specific values.
Works with
Compatible components

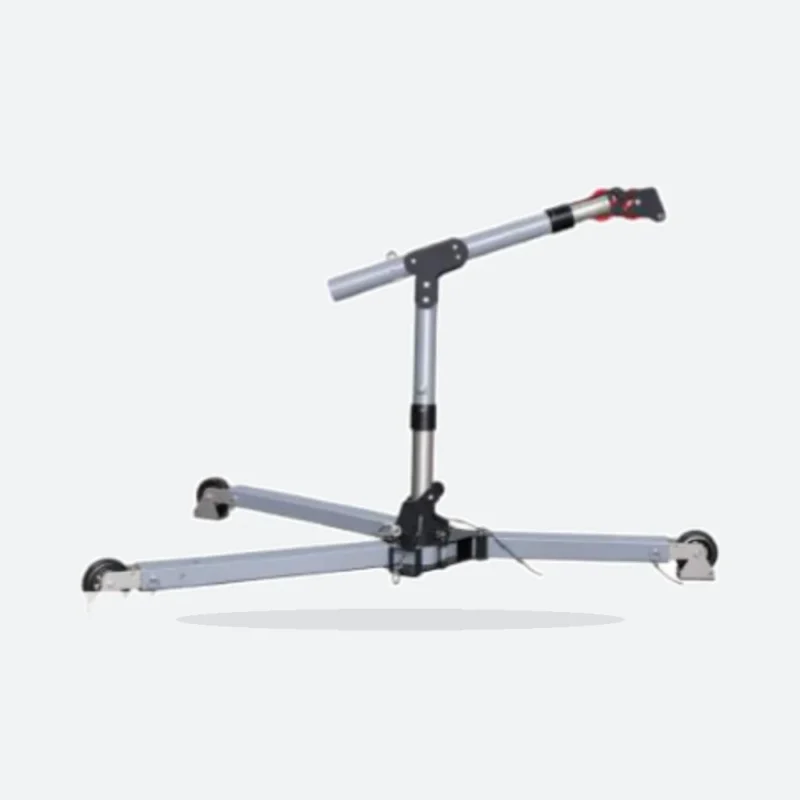

FD-MA-100
TsaF FlexiDavit Modular Arm
Portable stainless steel davit arm for rescue at height, with a maximum load of 12 kN,…

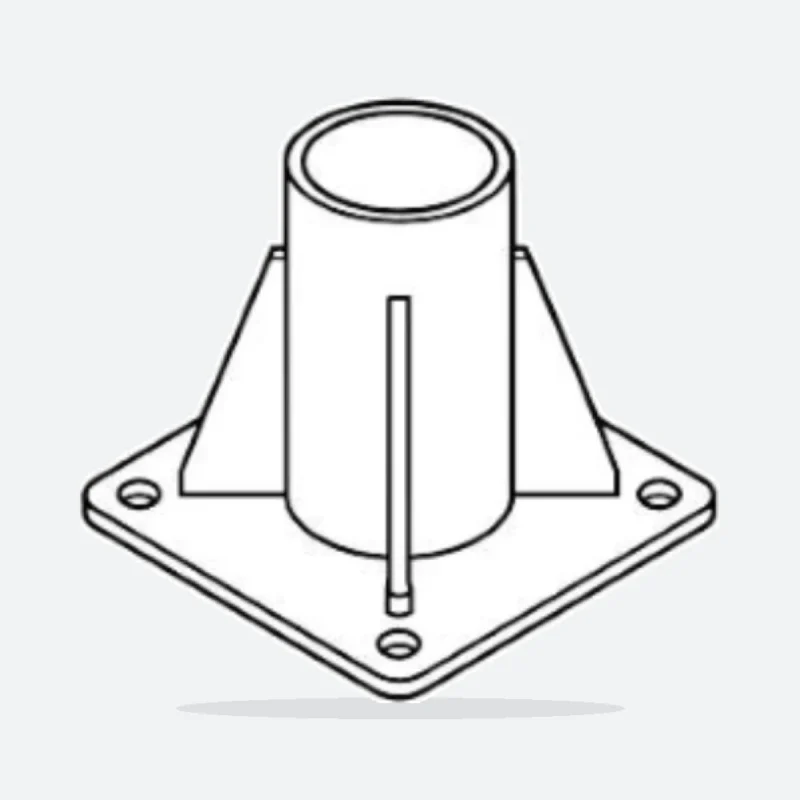

TSOSAR03H
Bolt-down Floor Base
Bolt-down floor base for mounting the TsaF FlexiDavit Modular Arm.

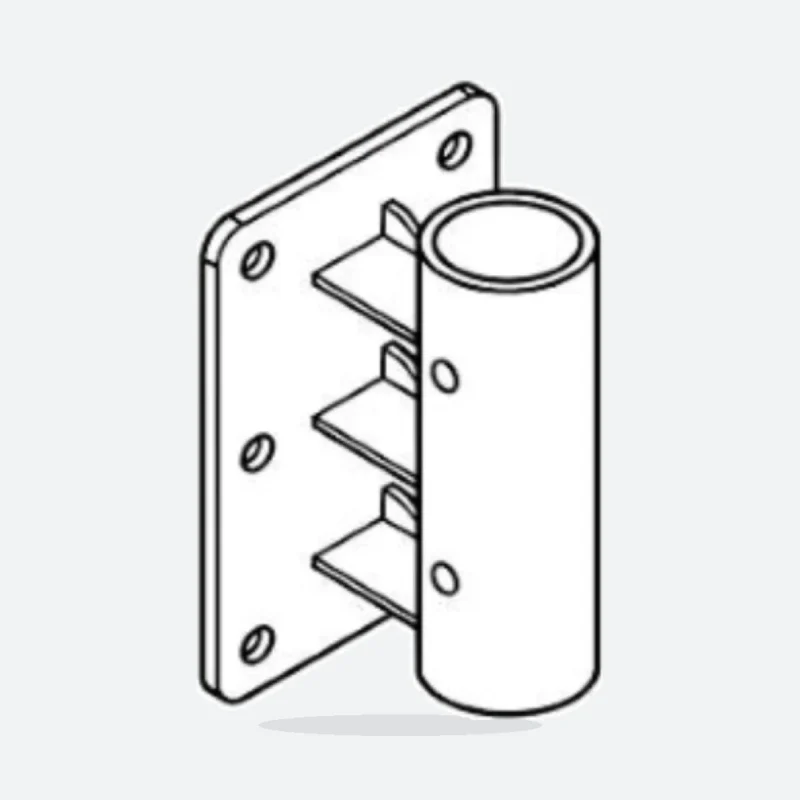

TSOSAR03L
Side Mounting Base
Side mounting base for fixing the TsaF FlexiDavit Modular Arm to a wall or vertical structure.
