TsaF ConcreteSafe · CS-MHP-T360
CS-MHP-T360

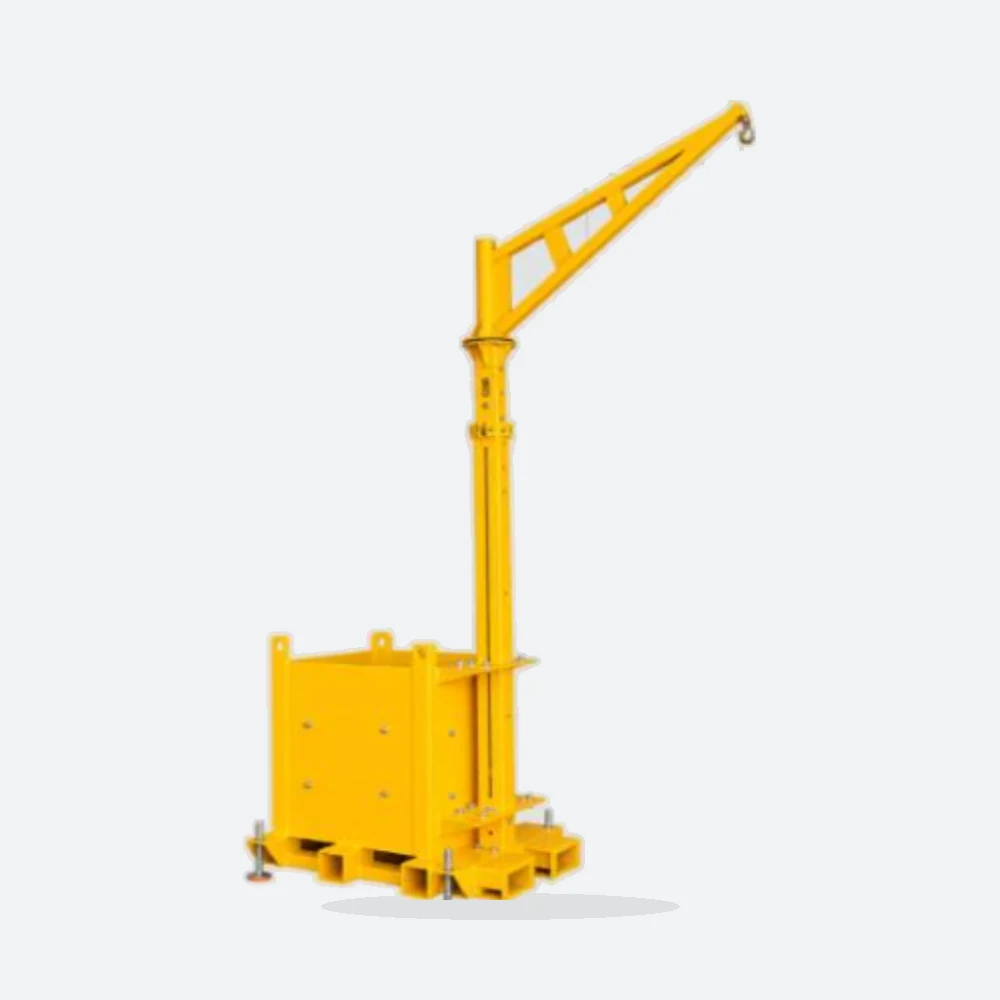

TsaF ConcreteSafe – CS-MHP-T360
Counterweight mobile anchor with a 1.44 m x 1.30 m footprint and a 1.5 m swing arm that rotates 360°.
Used in
Specifications
| SKU | CS-MHP-T360 |
|---|---|
| Material | Carbon Steel, Aluminium Alloy, Galvanized Steel |
| Overall Footprint | 1.44m × 1.30m |
| Swing Arm Length | 1.5m |
| Swing Arm Rotation | 360° |
| Weight | 755 kg, including empty counterweight box |
TsaF ConcreteSafe (CS-MHP-T360) is a counterweight-type mobile anchor in the Mobile Anchor Series, part of the Anchorline & Rescue System. It provides a freestanding anchor point where no fixed structure is available, and can be moved into position as work locations change.
It is made from carbon steel, aluminium alloy and galvanised steel. The overall footprint is 1.44 m x 1.30 m. The swing arm is 1.5 m long and rotates through 360°. The weight is 755 kg, including the empty counterweight box. The catalogue lists applications including roof hatches, skylight guarding, roof perimeters, loading docks and warehouse traffic lanes.
Downloads
- Datasheet available on request — add this product to your enquiry.
Specifications are indicative. Refer to the product datasheet or ask our engineers for project-specific values.
